TECTA D Series: Detecting Motion Where It Matters Most
The new TECTA motion detectors provide reliable detection outdoors – individually adjustable and discreet in design. Whether using the classic potentiometer or the convenient app: the three variants D180, D180i, and D280i cover all requirements around entrances, driveways, and corners of the home.
The TECTA D series at a glance: three variants, two colors, one solution for all outdoor areas.

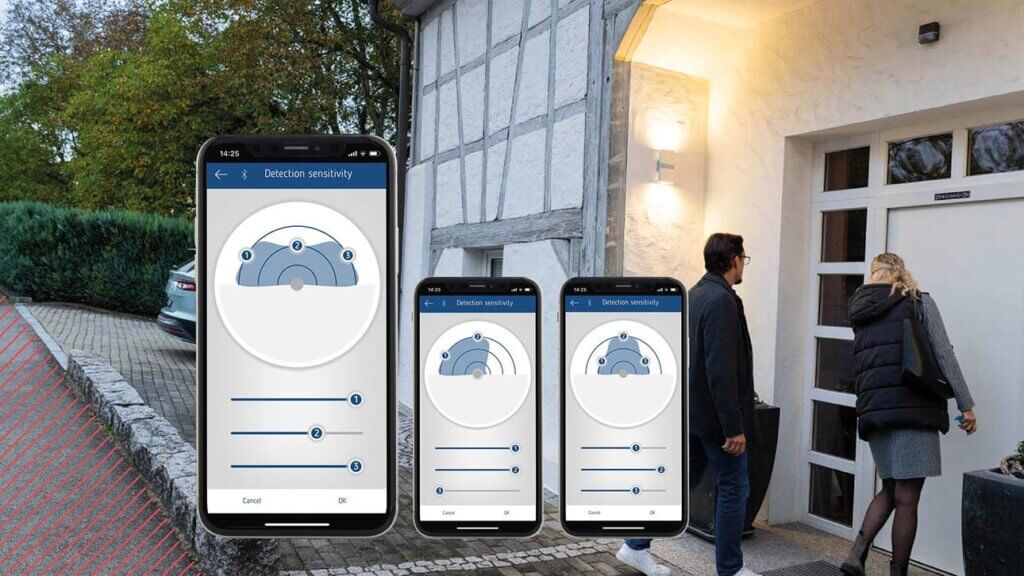

Streets, sidewalks or neighboring properties can be specifically and directly excluded via the app.
The new TECTA motion detectors provide reliable detection outdoors – individually adjustable and discreet in design. Whether using the classic potentiometer or the convenient app: the three variants D180, D180i, and D280i cover all requirements around entrances, driveways, and corners of the home.

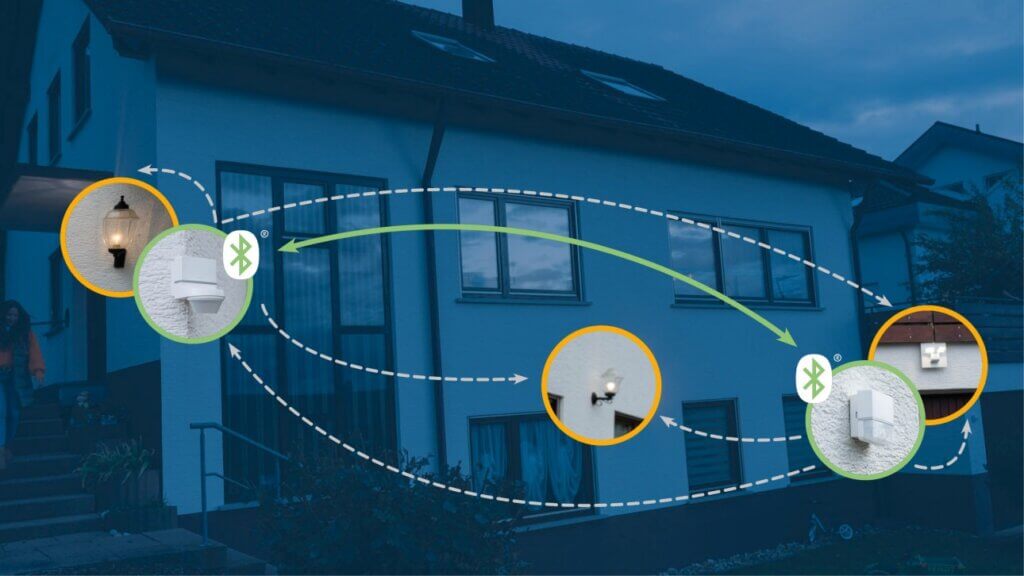

Multiple motion detectors communicate wirelessly and switch a lighting group together. This creates uniform illumination around the house.
The benefits at a glance
Three variants for different requirements: D180, D180i, D280i
App control with digital detection zone adjustment (D180i & D280i)
Bluetooth networking allows multiple motion detectors to be linked. They can either switch the same lighting group or control separate luminaires
Continuous light measurement for daylight-dependent switching
Compact housing in white or anthracite
Accessories available for flexible mounting on corners or with extra cable space
TECTA D280i WH
- ➜ Passive infra-red motion detector for wall installation
- ➜ 180° detection angle, Ø 24 m
- ➜ Detection area digitally adjustable via app, no mechanical adjustment necessary
TECTA D280i AN
- ➜ Passive infra-red motion detector for wall installation
- ➜ 180° detection angle, Ø 24 m
- ➜ Detection area digitally adjustable via app, no mechanical adjustment necessary
TECTA D180i WH
- ➜ Passive infra-red motion detector for wall installation
- ➜ 180° detection angle, 14 m
- ➜ Detection area digitally adjustable via app, no mechanical adjustment necessary
TECTA D180i AN
- ➜ Passive infra-red motion detector for wall installation
- ➜ 180° detection angle, 14 m
- ➜ Detection area digitally adjustable via app, no mechanical adjustment necessary
TECTA D180 WH
- ➜ Passive infra-red motion detector for wall installation
- ➜ 180° detection angle
- ➜ For outdoor use
TECTA D180 AN
- ➜ Passive infra-red motion detector for wall installation
- ➜ 180° detection angle
- ➜ For outdoor use
PIRA TC AP
- ➜ Motion detector (PIR) for surface-mounted ceiling installation indoors
- ➜ Rectangular detection area 360°, 25 x 3 m (75 m²) at 2,5 m mounting height
- ➜ 1 channel light (Relay, 230 V)
PIRA TC DE
- ➜ Motion detector (PIR) for recess ceiling installation indoors
- ➜ Rectangular detection area 360°, 25 x 3 m (75 m²) at 2,5 m mounting height
- ➜ 1 channel light (Relay, 230 V)
PIRA T8 AP
- ➜ Motion detector/Presence detector (PIR) for surface-mounted ceiling installation indoors
- ➜ Circular detection area 360°, up to Ø 8 m (50 m2) at mounting height 2.5 m
- ➜ 1 channel light (Relay, 230 V)
PIRA T8 DE
- ➜ Motion detector/Presence detector (PIR) for recess ceiling installation indoors
- ➜ Circular detection area 360°, up to Ø 8 m (50 m2) at mounting height 2.5 m
- ➜ 1 channel light (Relay, 230 V)
PIRA T8-2 DE
- ➜ Motion detector/Presence detector (PIR) for recess ceiling installation indoors
- ➜ Circular detection area 360°, up to Ø 8 m (50 m2) at mounting height 2.5 m
- ➜ 1 channel light (Relay, 230 V) and 1 channel presence (relay potential-free for HVAC control)
PIRA TO AP
- ➜ Passive infra-red motion detector for wall installation
- ➜ 180° detection angle, 10 m at 2 m mounting height
- ➜ For outdoor use
PIRA T6 Mini
- ➜ Motion detector/Presence detector (PIR) for recess ceiling installation indoors
- ➜ Circular detection area 360°, up to Ø 6 m (28 m2) at mounting height 2.5 m
- ➜ 1 channel light (Relay, 230 V)
thePiccola P360-100 DE WH
- ➜ Passive infra-red presence detector for ceiling installation in false ceilings
- ➜ Circular detection area 360°, up to Ø 8 m (50 m2) at mounting height 2.5 m
- ➜ 1 channel light (Relay, 230 V)
LUXA 103 S360-100-28 AP WH
- ➜ Passive infrared presence detector, for surface-mounting
- ➜ Rectangular detection area 360°, 28 x 5 m (140 m2) at 3 m mounting height
- ➜ 1 channel light (relay 230 V)
LUXA 103 S360-100-28 DE-UP WH
- ➜ Passive infrared presence detector, ceiling installation as supplied or flush-mounting by means of removable springs/protection cap and enclosed mounting frame
- ➜ Rectangular detection area 360°, 28 x 5 m (140 m2) at 3 m mounting height
- ➜ 1 channel light (relay 230 V)
LUXA 103 S360-101-12 AP WH
- ➜ Passive infrared presence detector, surface-mounting
- ➜ 1 channel light (relay 230 V) and 1 channel presence (relay potential-free for HVAC control)
- ➜ Circular detection area 360°, Ø 12 m (113 m2) at 3 m mounting height
LUXA 103 S360-100-12 AP WH
- ➜ Passive infrared presence detector, surface-mounting
- ➜ 1 channel light (relay 230 V)
- ➜ Circular detection area 360°, Ø 12 m (113 m2) at 3 m mounting height
LUXA 103 S360-100-12 DE-UP WH
- ➜ Passive infrared presence detector, ceiling installation as supplied or flush-mounting by means of removable springs/protection cap and enclosed mounting frame
- ➜ 1 channel light (relay 230 V)
- ➜ Circular detection area 360°, Ø 12 m (113 m2) at 3 m mounting height
