Item no.: 1010105
White

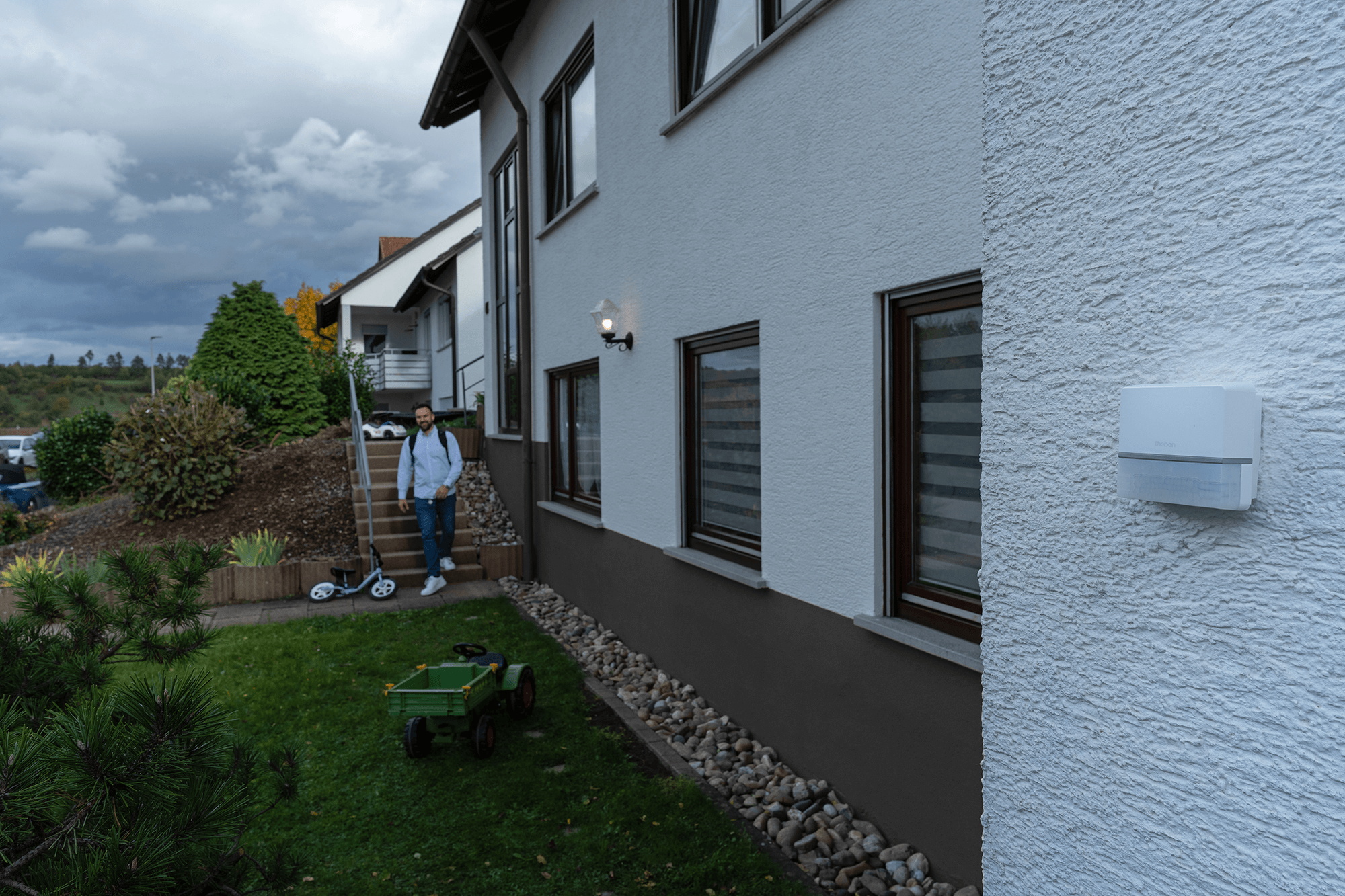

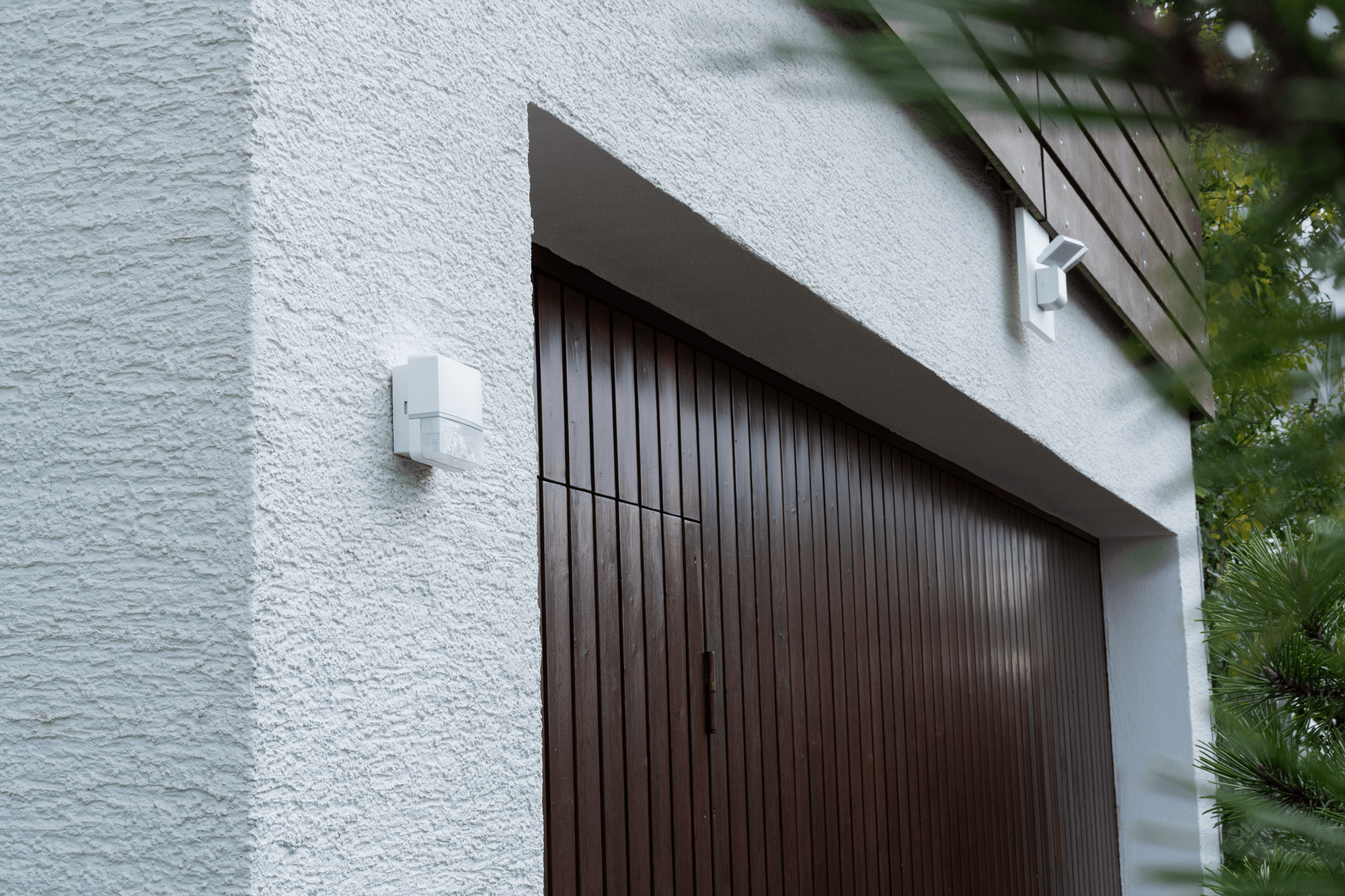

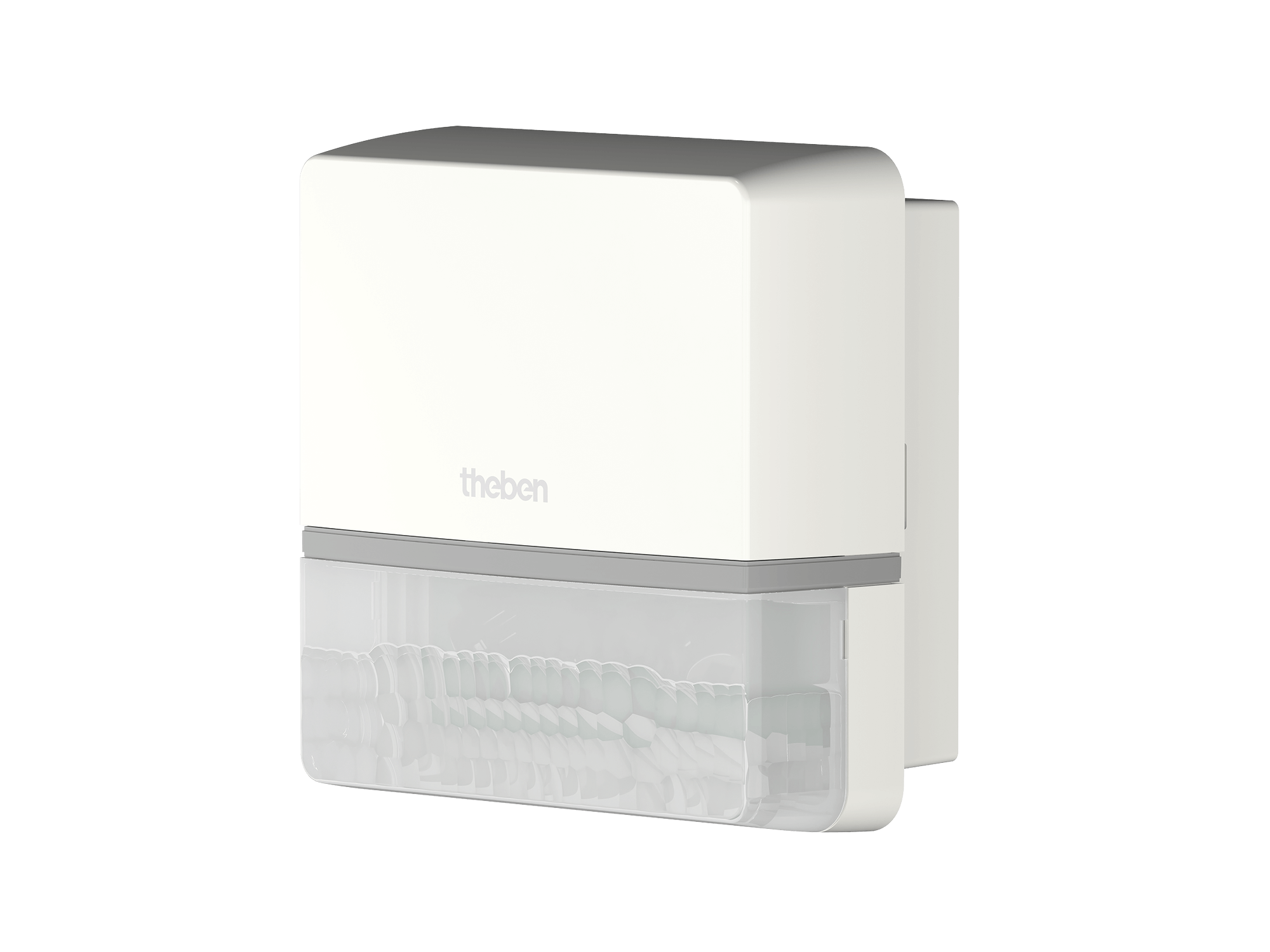

The TECTA D180i WH is a passive infrared motion sensor for precise, efficient lighting control in residential and commercial spaces. With a 180° detection angle and 14 m range, it reliably detects motion for entrances, façades, and outdoor areas. Brightness, delay, and detection settings are easily adjusted via the app for fast, tool-free setup.It offers Automatic, Permanent Light, and D-MODE functions, supports group linking, and uses zero-cross switching to extend relay life. Compatible with LED, halogen, fluorescent, and energy-saving lamps, it ensures versatile use.With IP55 protection and operation from -25 °C to +55 °C, the TECTA D180i WH is durable and weather-resistant. A plug-in design allows quick installation, and factory presets enable instant use—delivering smart, reliable lighting control in a sleek white finish.

Function description

  • Passive infra-red motion detector for wall installation
  • 180° detection angle, 14 m
  • Detection area digitally adjustable via app, no mechanical adjustment necessary
  • Mode selection: Automatic / permanent light / D-MODE
  • Can be linked in groups
  • Adjustable brightness switching value and switch-off delay
  • Area limit via lens attachment
  • Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs
  • Zero-cross switching for relay-saving switching and high lamp loads
  • Test function for checking detection area
  • Installation on flush-mounted socket possible (60 mm)
  • Single-handed plug-in installation
  • Instant start-up possible via factory preset

Technical data

Operating voltage 230 V AC
Frequency 50 Hz
Stand-by consumption <0.4 W
Light measurement Mixed light measurement
Number of channels 1
Colour White
Installation type Wall installation, Outdoor
Setting range brightness 2 lx – 1000 lx
Switching capacity at 230 V AC, cos φ = 1
Detection angle 180°
Switching output Light
Light switch-off delay 5 s – 30 min
Incandescent/halogen lamp load 2300 W
Energy saving lamps 150 W
LED lamp 2-8 W 600 W
LED lamp > 8 W 600 W
Lamp types Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Ambient temperature -25°C … 55°C
Protection class II
Type of protection IP 55

Detection area

Mounting height (A) Diagonally (t) Head on to (R)
1,8 m 10 m 3 m
2,2 m 12 m 4 m
2.5 m 14 m 5 m

Downloads







Operating instructions PDF Instruction Manual
Data sheet PDF Data sheet
