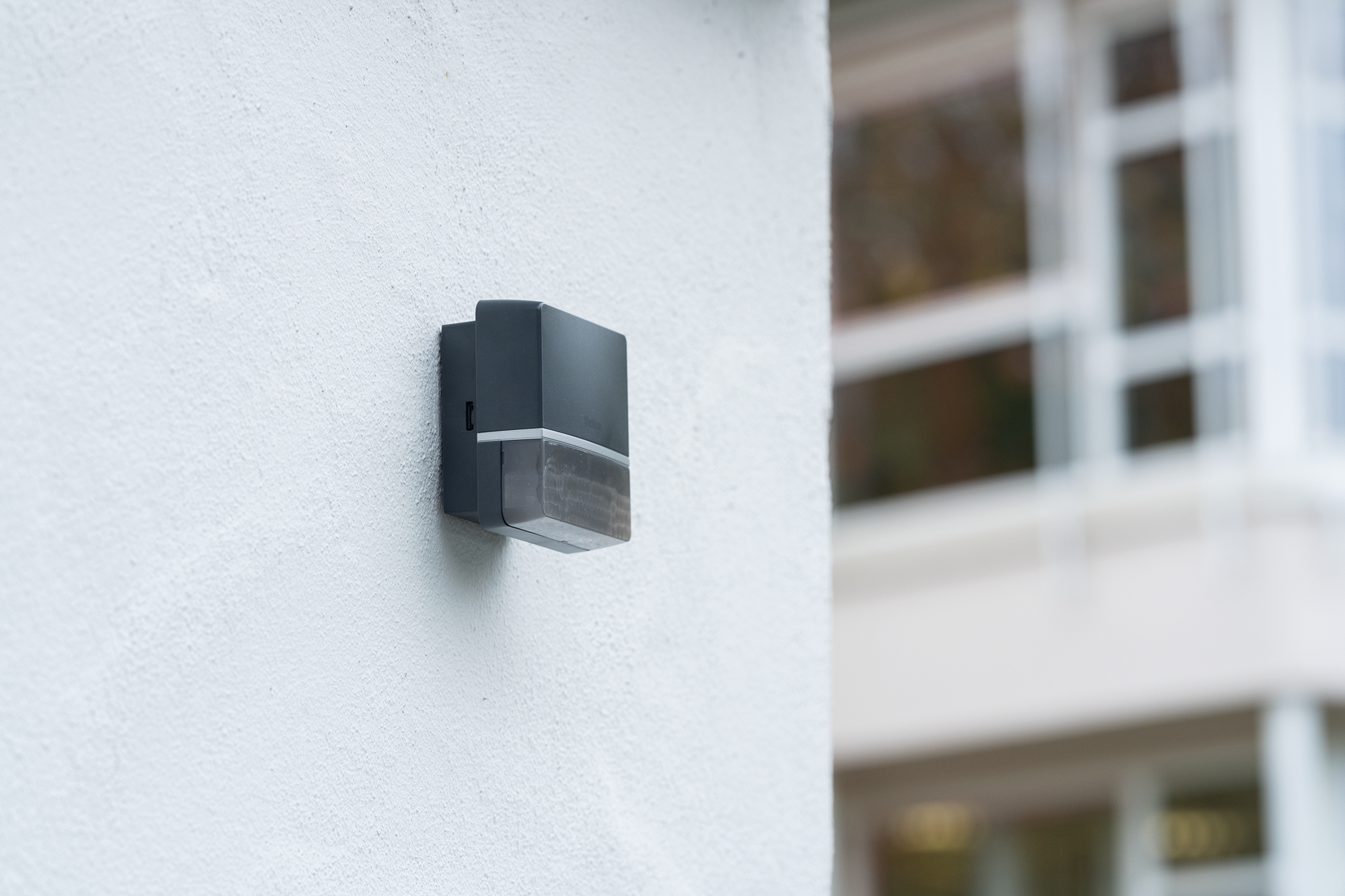

Black motion sensor controller

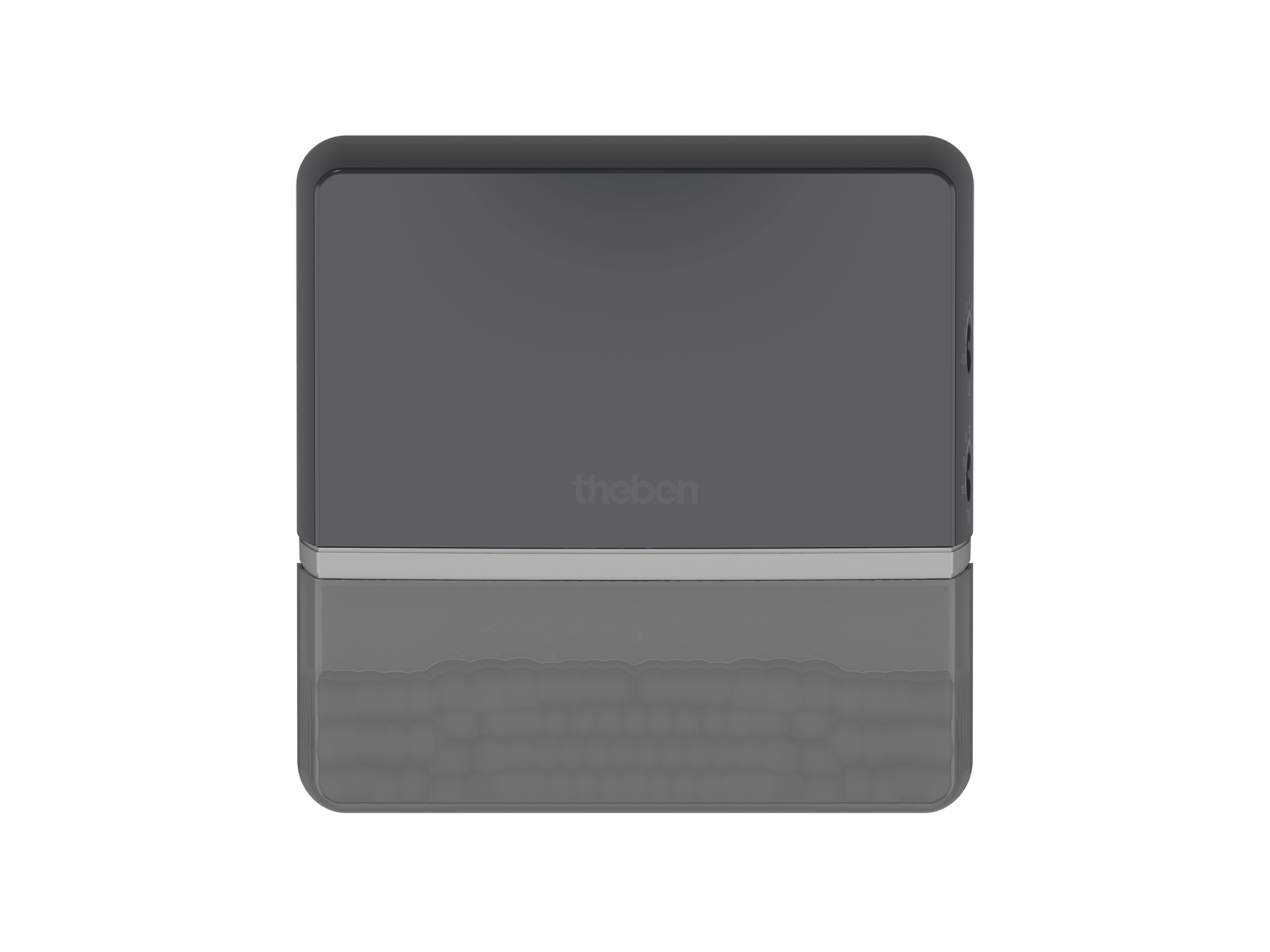

TECTA D180 AN - Image 2
TECTA D180 AN - Image 3
TECTA D180 AN - Image 4
TECTA D180 AN - Image 5

TECTA D180 AN

  • Passive infra-red motion detector for wall installation
  • 180° detection angle
  • For outdoor use


Find Stockist

TECTA D180 AN

TECTA D180 AN

Request further information now
Item no.: 1010101
Anthracite

The TECTA D180 AN is a passive infra-red motion detector for efficient outdoor lighting control. With a 180° detection angle, it ensures reliable motion sensing for entrances and façades. Brightness and delay settings are adjustable for optimal performance.

Zero-cross switching extends relay life and supports high lamp loads, while mixed-light measurement ensures compatibility with LEDs, halogen, fluorescent, and energy-saving lamps.

Weatherproof and durable, the TECTA D180 AN features IP55 protection and operates from -25 °C to +55 °C. Its plug-in design allows quick wall installation, and factory presets enable instant use. Combining precision, reliability, and an anthracite finish, it delivers smart lighting control.

Function description

  • Passive infra-red motion detector for wall installation
  • 180° detection angle
  • For outdoor use

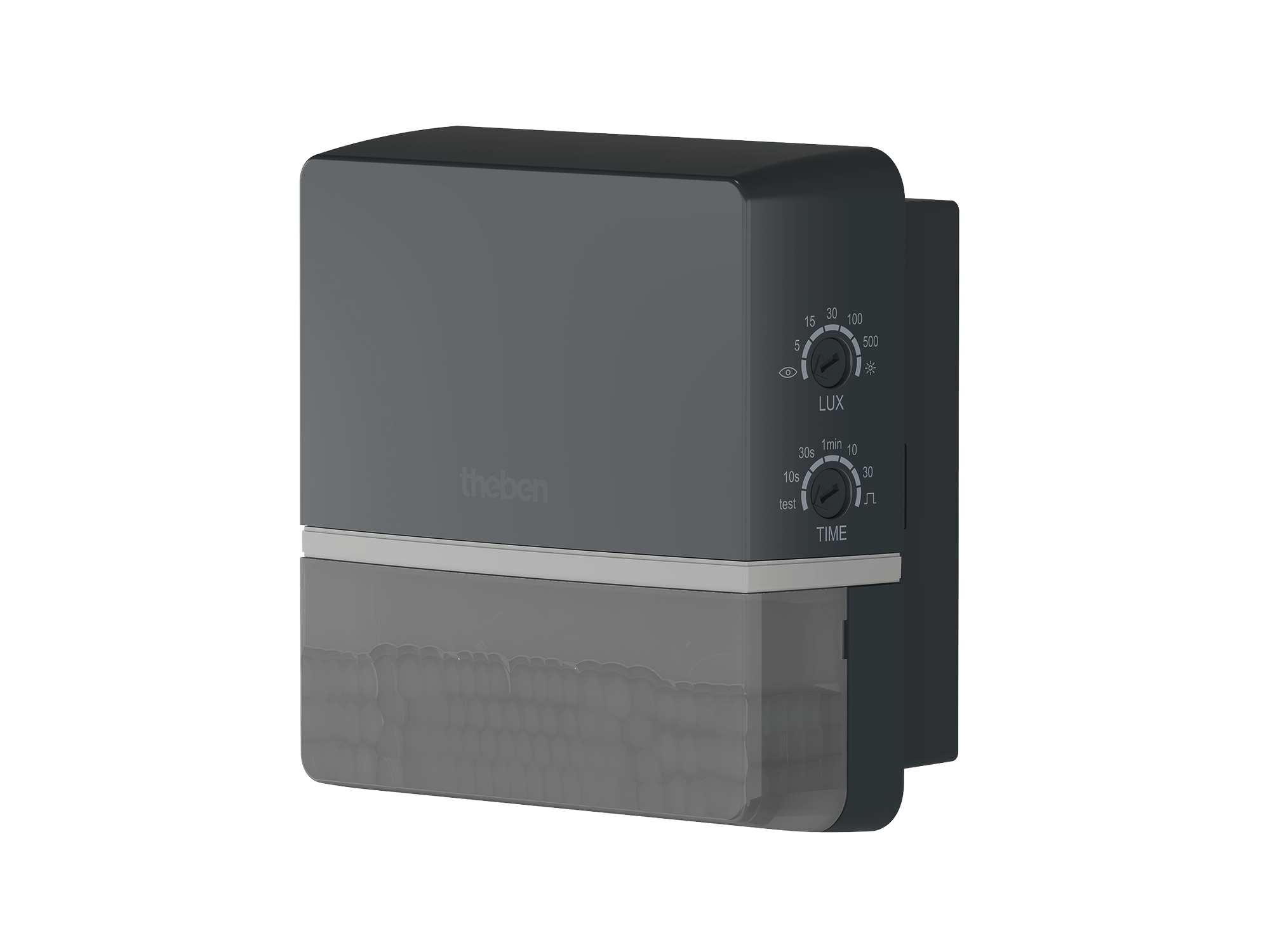

  • Adjustable brightness switching value and switch-off delay
  • Area limit via lens attachment
  • Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs
  • Zero-cross switching for relay-saving switching and high lamp loads
  • Test function for checking detection area
  • Installation on flush-mounted socket possible (60 mm)
  • Single-handed plug-in installation
  • Instant start-up possible via factory preset
  • Terminal for protective earth conductor

Technical data

Operating voltage 230 V AC
Frequency 50 Hz
Stand-by consumption <0.2 W
Light measurement Mixed light measurement
Number of channels 1
Colour Anthracite
Installation type Wall installation, Outdoor
Setting range brightness 5 lx – 500 lx
Switching capacity at 230 V AC, cos φ = 1
Detection angle 180°
Switching output Light
Light switch-off delay 10 s – 30 min
Incandescent/halogen lamp load 2300 W
Energy saving lamps 150 W
LED lamp 2-8 W 400 W
LED lamp > 8 W 400 W
Lamp types Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Ambient temperature -25°C … 55°C
Protection class II
Type of protection IP 55

Detection area



Mounting height (A) Diagonally (t) Head on to (R)
1,8 m 10 m 3 m
2,2 m 12 m 4 m
2.5 m 14 m 5 m



Downloads



Operating instructions PDF Instruction Manual
Data sheet PDF Data sheet
