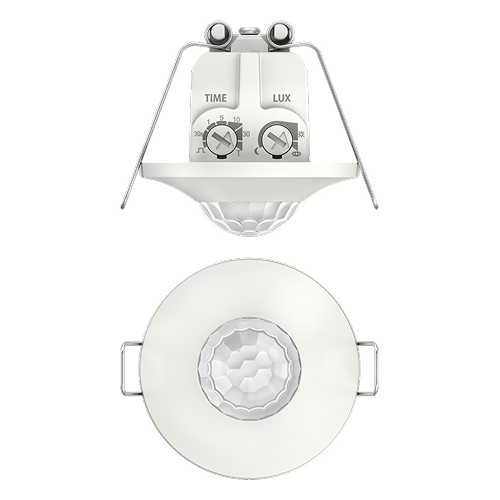

thePiccola P360-100 DE WH

Item no.:2090200

The thePiccola P360 is a compact ceiling-mounted passive infrared (PIR) presence detector, ideal for energy-efficient lighting control in offices, corridors, and small commercial spaces. It provides a 360° circular detection area up to Ø 8 m (50 m²) at 2.5 m mounting height, ensuring reliable coverage.

It supports automatic presence- and brightness-dependent control, with configurable brightness threshold (5–1000 lx), switch-off delay (30 s–30 min), and a pulse function for staircase lighting. A teach-in function, test mode, and optional remote control enhance flexibility and ease of setup.

The thePiccola P360 allows Master/Slave switching to expand coverage and is ready to use out of the box with factory presets. With IP55 sensor protection, compatibility with multiple lamp types including LEDs up to 600 W, and low 0.4 W power consumption, it offers dependable performance in modern indoor installations.

Request further information now

thePiccola P360-100 DE WH

thePiccola P360-100 DE WH

Request further information now

Function description

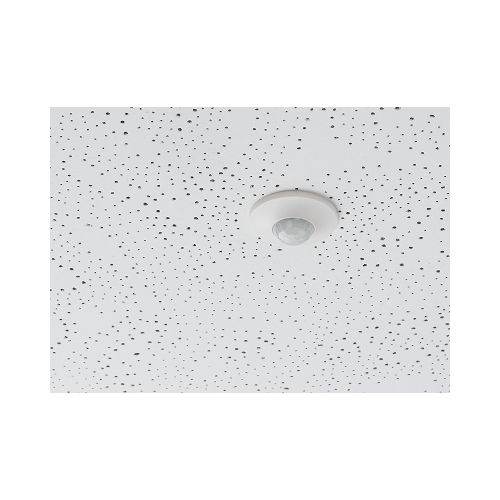

Passive infra-red presence detector for ceiling installation in false ceilings
Circular detection area 360°, up to Ø 8 m (50 m2) at mounting height 2.5 m
1 channel light (Relay, 230 V)
Automatic presence- and brightness-dependent control for lighting
Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
Channel A light: relay, 230 V
Choice of fully or semi-automatic operation
Brightness switching value configurable, teach-in function
Pulse function for staircase light time switch
Time delay configurable

Test mode for checking function and detection area
Connection option for sensor for manual switching
Extension of detection area via Master/Slave switching
Ready for immediate use due to factory presetting

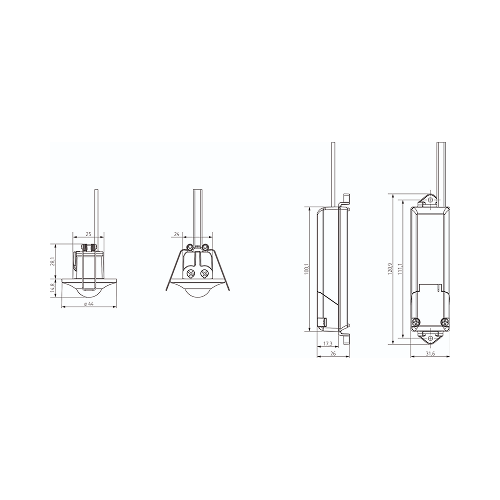

Diameter of ceiling cutout 34–36 mm
Remote controllable with optionally remote controls SendoPro, theSenda P and theSenda S

Technical data

Specification	Value
Operating voltage	110 V AC – 240 V AC
Frequency	50 – 60 Hz
Installation height	2 – 6 m
Installation type	Ceiling mounting
Colour	White
Power consumption	~0.4 W
Light measurement	Mixed light measurement
Setting range brightness	5 – 1000 lx
Light switch-off delay	30 s – 30 min
Lamp types	Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Incandescent/halogen lamp load	2000 W
Fluorescent lamp load (conventional) not corrected	2000 VA
Fluorescent lamp load (conventional) parallel-corrected	1300 VA 140 µF
Fluorescent lamp load (conventional) series-corrected	2000 VA
Fluorescent lamp load (electronic ballast)	1200 W
LED lamp < 2 W	55 W
LED lamp 2-8 W	600 W
LED lamp > 8 W	600 W
Switching output	Light
Detection range	50 m² (ø 8 m \| 360°)
Detection angle	360°
Ambient temperature	-20°C … 50°C
Type of protection	IP 55 (Sensor), IP 20 (power module)

Downloads

Instruction Manual	PDF	Instruction Manual
Features Overview	PDF	Features Overview
Datasheet	PDF	Datasheet
