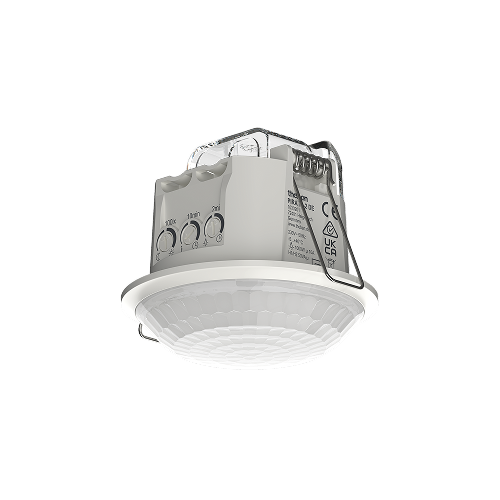

PIRA T8-2 DE

Item no.:1030201

Motion detector/Presence detector (PIR) for recess ceiling installation indoors
Circular detection area 360°, up to Ø 8 m (50 m2) at mounting height 2.5 m
1 channel light (Relay, 230 V) and 1 channel presence (relay potential-free for HVAC control)

Function description

Motion detector/Presence detector (PIR) for recess ceiling installation indoors
Circular detection area 360°, up to Ø 8 m (50 m2) at mounting height 2.5 m
1 channel light (Relay, 230 V) and 1 channel presence (relay potential-free for HVAC control)
Automatic motion and brightness-dependent control for lighting and HVAC
Mixed light measurement
Operation as fully automatic device
Brightness switching value configurable
Time delay configurable
Ready for immediate operation thanks to factory presetting (brightness switching value 100 lux, switch-off delay 2 min)

Specification	Value
Operating voltage	230 V AC
Frequency	50 Hz
Installation height	2 – 3 m
Installation type	Ceiling mounting, Indoor
Colour	White
Power consumption	< 0.6 W
Light measurement	Mixed light measurement
Setting range brightness	5 – 1000 lx
Light switch-off delay	5 s – 15 min
Lamp types	Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
LED lamp 2-8 W	200 W
LED lamp > 8 W	200 W
Presence switch-off delay	10 s – 120 min
Switching capacity presence	50 W / 50 VA (max. 2 A), min. 0.5 mV / 10 mA
Switching output	Light \| Presence
Detection range	50 m² (ø 8 m \| 360°)
Detection angle	360°
Ambient temperature	-5°C … 40°C
Type of protection	IP 21
