PIRA T8 DE

Item no.:1030200

Function description

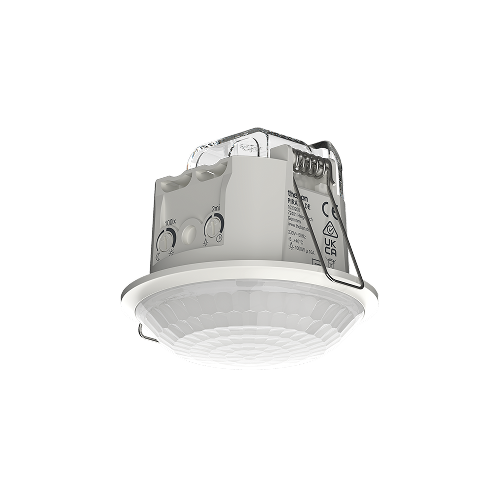

Motion detector/Presence detector (PIR) for recess ceiling installation indoors
Circular detection area 360°, up to Ø 8 m (50 m2) at mounting height 2.5 m
1 channel light (Relay, 230 V)
Automatic motion and brightness-dependent control for lighting
Mixed light measurement
Operation as fully automatic device
Brightness switching value configurable
Time delay configurable
Ready for immediate operation thanks to factory presetting (brightness switching value 100 lux, switch-off delay 2 min)

Specification	Value
Operating voltage	230 V AC
Frequency	50 Hz
Installation height	2 – 3 m
Installation type	Ceiling mounting, Indoor
Colour	White
Power consumption	< 0.5 W
Light measurement	Mixed light measurement
Setting range brightness	5 – 1000 lx
Light switch-off delay	5 s – 15 min
Lamp types	Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Incandescent/halogen lamp load	1000 W
LED lamp 2-8 W	200 W
LED lamp > 8 W	200 W
Switching output	Light
Detection range	50 m² (ø 8 m \| 360°)
Detection angle	360°
Ambient temperature	-5°C … 40°C
Type of protection	IP 21

Document Type	Format	Download
Tender Text	PDF	PIRA T8 DE Data Sheet
Hand Book	PDF	BRO PIRA T A4 – 16 Pages (EN)
Operating Instructions	PDF	PIRA DE Bedienungsanleitung
