Item no.: 3120122

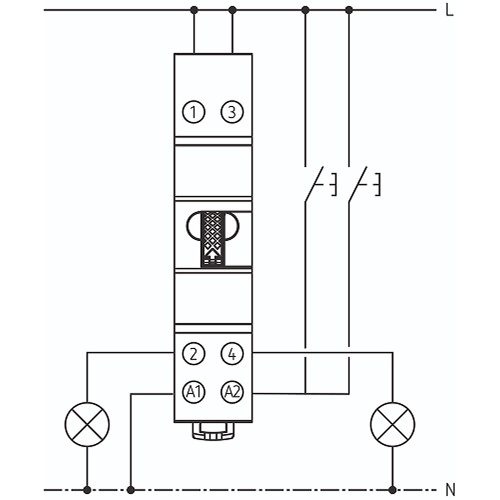

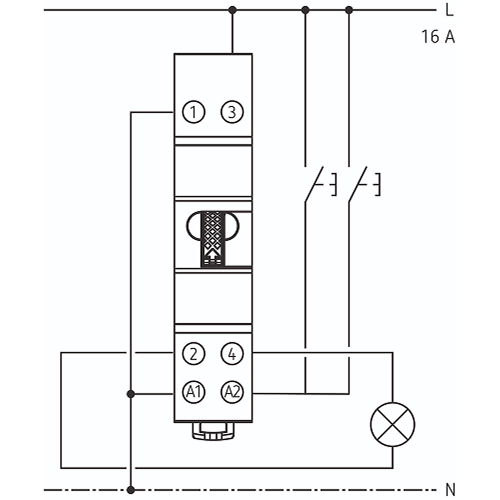

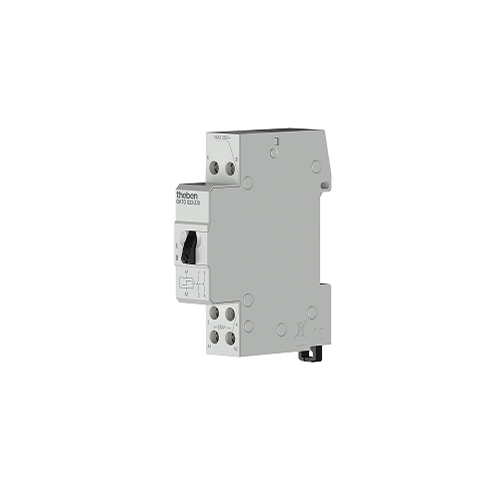

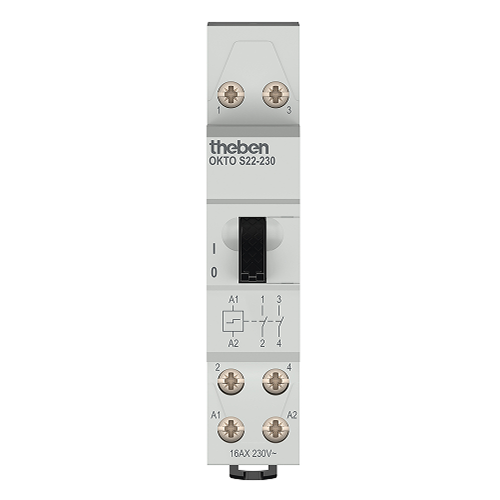

The OKTO S 22 230 is a robust electromechanical latching relay with 2 normally open contacts, designed for convenient and flexible lighting control. It enables operation of one common consumer from multiple push-buttons with just 2 wires per switch, ensuring simple and cost-effective installation.
This relay supports all-pole disconnection for electrical safety, includes an integrated manual switch, and is SELV-compatible for added protection. With LED switching loads up to 200 W and no closed-circuit current consumption, it combines safety, energy efficiency, and durability.
Compact and DIN-rail mountable, the OKTO S 22 230 is an excellent choice for residential, commercial, and industrial environments requiring reliable dual-channel control.
| Parameter | Specification |
|---|---|
| Operating voltage | 230 V AC |
| Frequency | 50 Hz |
| Width | 1 module |
| Installation type | DIN rail |
| Glow lamp load | 3 mA |
| Type of contact | NO contact |
| Incandescent/halogen lamp load | 1800 W |
| LED lamp 2–8 W | 200 W |
| LED lamp > 8 W | 200 W |
| Switching capacity | 16 A at 230 V AC, cos φ = 1 |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Ambient temperature | -25°C to 60°C |
| Protection class | II |
| Type of protection | IP 20 |
