Item no.: 0070002

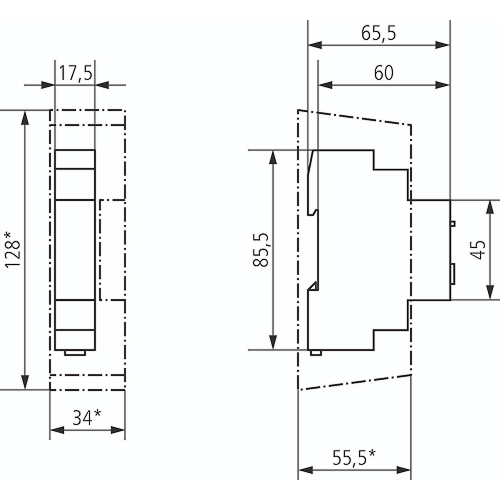

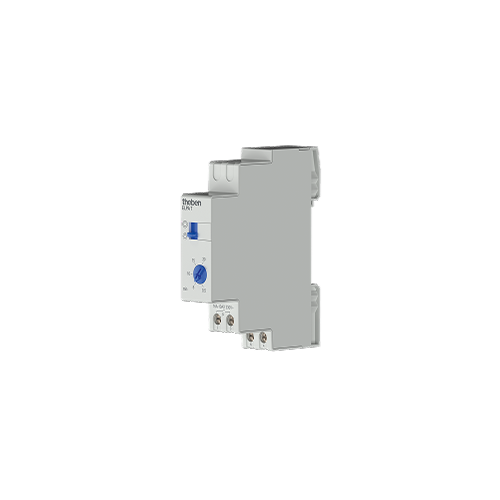

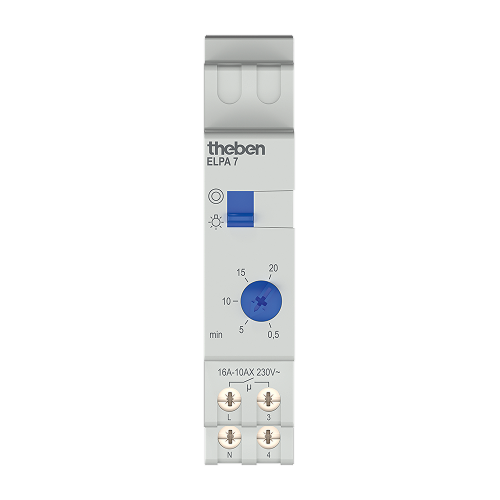

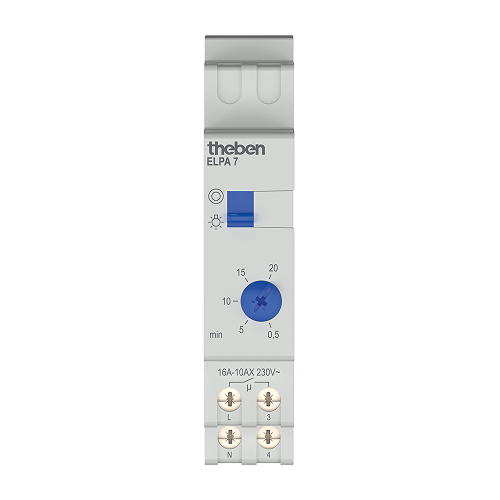

The ELPA 7 electronic staircase time switch ensures safe and reliable lighting with advanced features for modern installations. It prevents sudden darkness with a switch-off pre-warning, supports immediate secondary switching, and offers a toggle function for permanent light.
Built with zero-cross switching, it protects relays and handles high lamp loads with ease. Its automatic 3- or 4-conductor detection makes installation simple, while electronic overload protection ensures long-lasting performance.
Compact, accurate, and energy-efficient, the ELPA 7 is the ideal solution for stairwell lighting in residential and commercial buildings.
| Parameter | Specification |
|---|---|
| Operating voltage | 230 V AC |
| Frequency | 50 – 60 Hz |
| Width | 1 module |
| Installation type | DIN rail |
| Stand-by consumption | ~0.3 W |
| Glow lamp load | 100 mA |
| Setting range time | 0.5 – 20 min |
| Type of connection | 3-/4-conductors |
| 3/4-way conductors | Automatic |
| Secondary switching | At once |
| Duty cycle in per cent | 100 |
| Type of contact | NO contact |
| Opening width | < 3 mm (µ) |
| Switching output | Not potential-free (230 V) |
| Incandescent/halogen lamp load | 2600 W |
| Fluorescent lamp load (conventional) lead-lag circuit | 2600 VA |
| Fluorescent lamp load (conventional) parallel-corrected | 1300 W 130 µF |
| LED lamp < 2 W | 55 W |
| LED lamp 2–8 W | 600 W |
| LED lamp > 8 W | 600 W |
| Fluorescent lamp load (electronic ballast) | 1100 W |
| Fluorescent lamp load (conventional) series-corrected | 2600 VA |
| Fluorescent lamp load (conventional) not corrected | 2600 VA |
| Switching capacity | 10 AX at 230 V AC, cos φ = 0.3, 16 A at 230 V AC, cos φ = 1 |
| Inrush current | max. 800 A / 200 µs |
| Switch for permanent light | |
| Switch-off pre-warning | |
| Multi-voltage input | |
| Zero-cross switching | |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Ambient temperature | -10°C … 50°C |
| Protection class | II |
| Type of protection | IP 20 |
| Instruction Manual | Instruction Manual | |
| Datasheet | Datasheet | |
| Features Overview | Features Overview |
