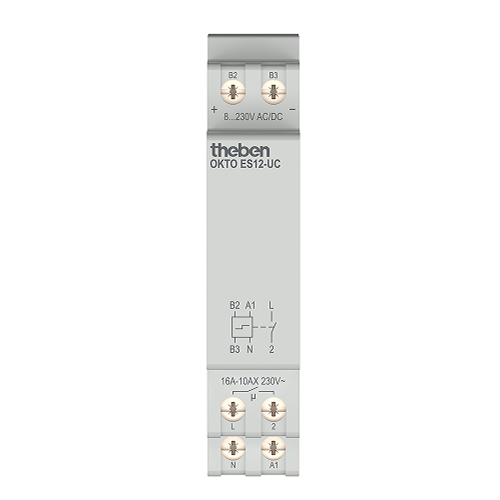

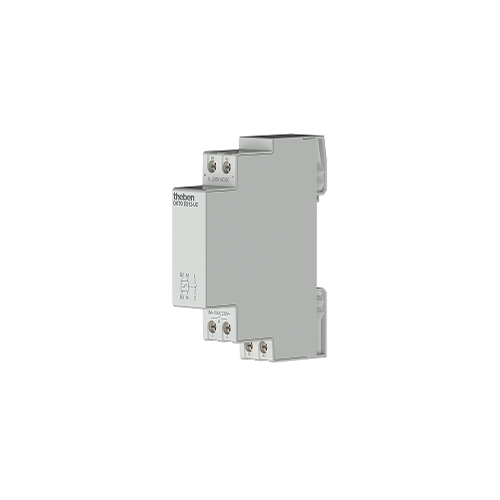

OKTO ES12-UC

Item no.: 3120131

Electronicall latching relay with 1 channel/contact (normally open contact)
Potential-free multi-voltage input (8 V to 230 V)
Comfortable lighting control of one common consumer with several push-buttons possible

Function description

Electronicall latching relay with 1 channel/contact (normally open contact)
Potential-free multi-voltage input (8 V to 230 V)
Comfortable lighting control of one common consumer with several push-buttons possible
Particularly quiet operation of the installation switch
High glow lamp load up to 100 mA

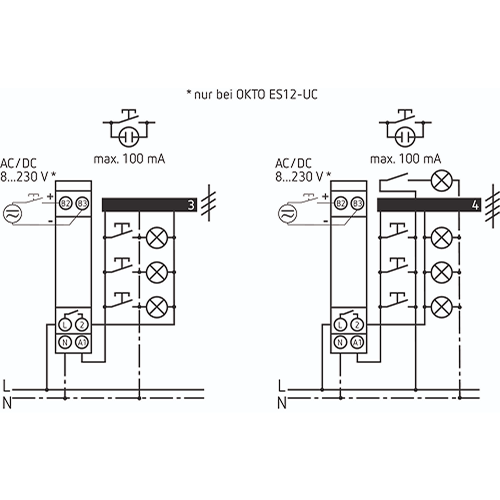

Automatic 3-/4-wire detection of the pulse switch
Potential-free with SELV
Lamps-friendly due to zero-crossing switching for high LED loads (up to 600 W)
Stand-by consumption of only 0.3 W

Parameter	Specification
Operating voltage	230 V AC
Frequency	50 – 60 Hz
Width	1 module
Installation type	DIN rail
Stand-by consumption	~0.3 W
Glow lamp load	100 mA
Type of contact	NO contact
Incandescent/halogen lamp load	2600 W
LED lamp < 2 W	55 W
LED lamp 2–8 W	600 W
LED lamp > 8 W	600 W
Switching capacity	16 A at 230 V AC, cos φ = 1
Inrush current	max. 800 A / 200 µs
Zero-cross switching
Housing and insulation material	High-temperature resistant, self-extinguishing thermoplastic
Ambient temperature	-25°C to 50°C
Protection class	II
Type of protection	IP 20
