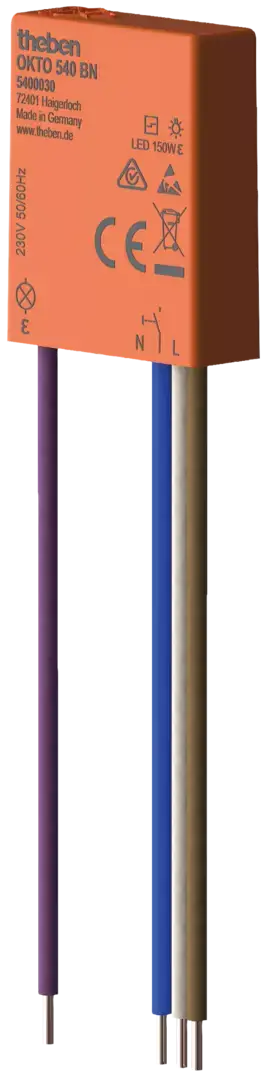

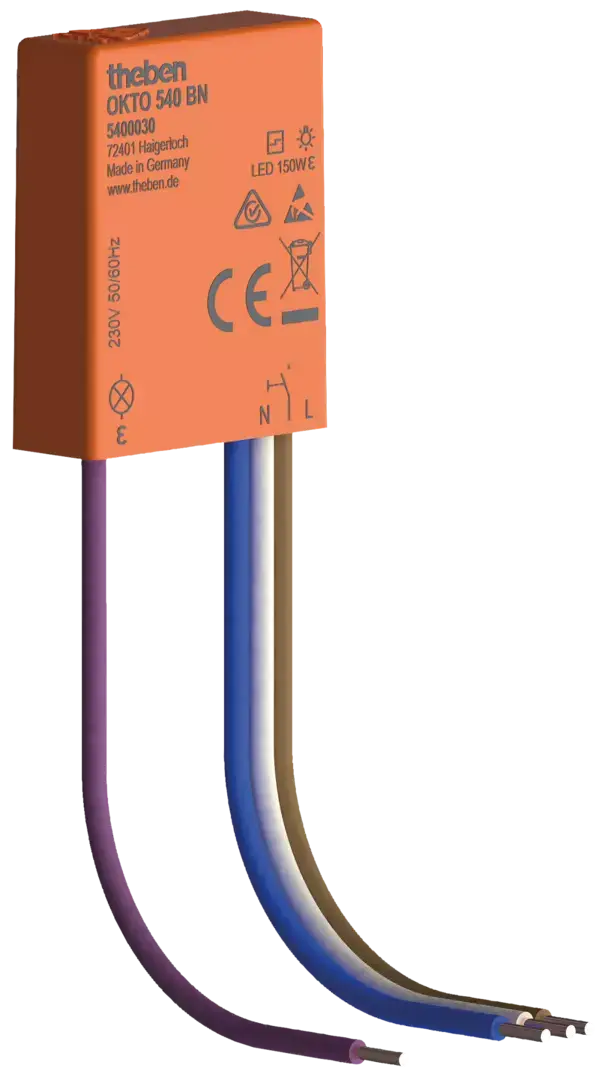

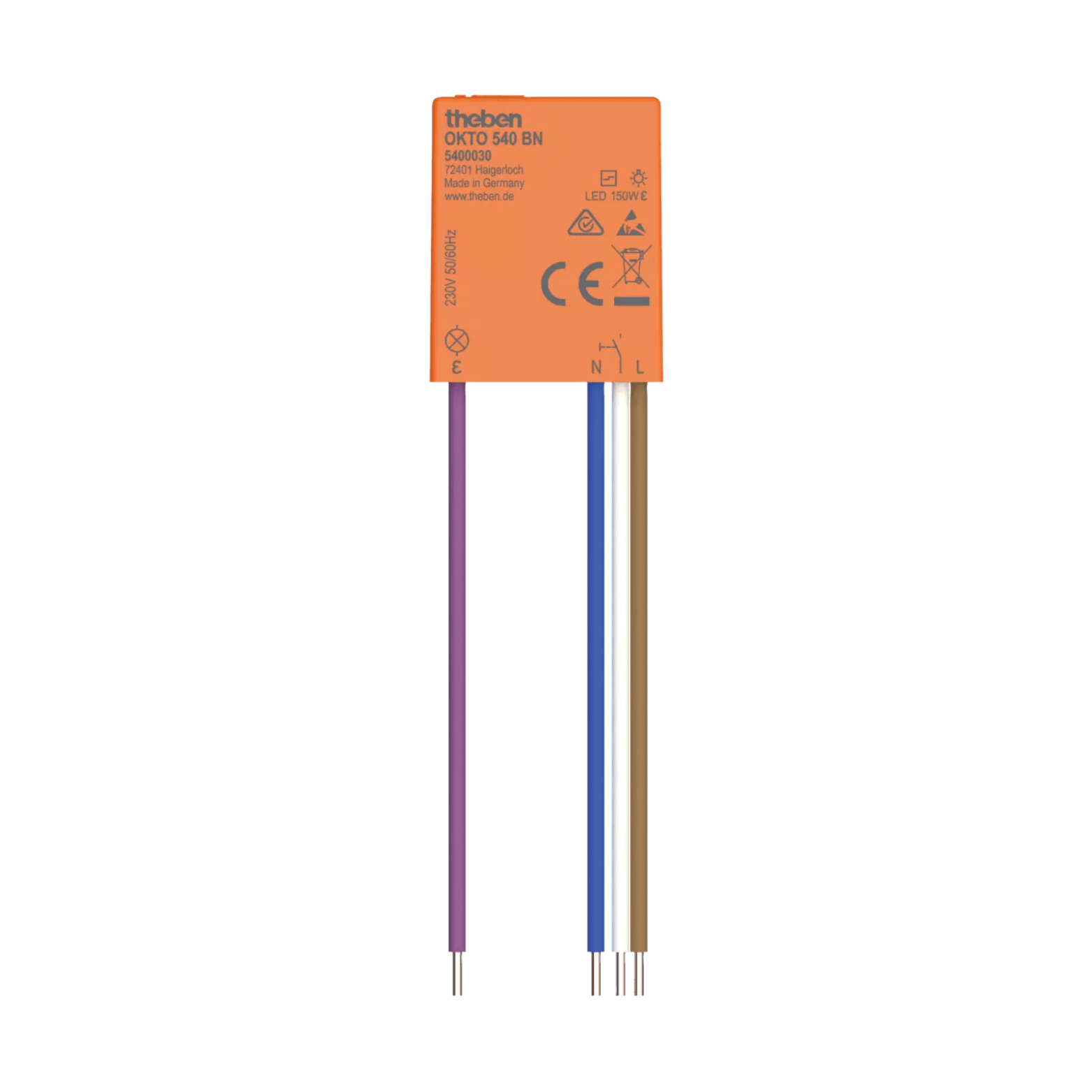

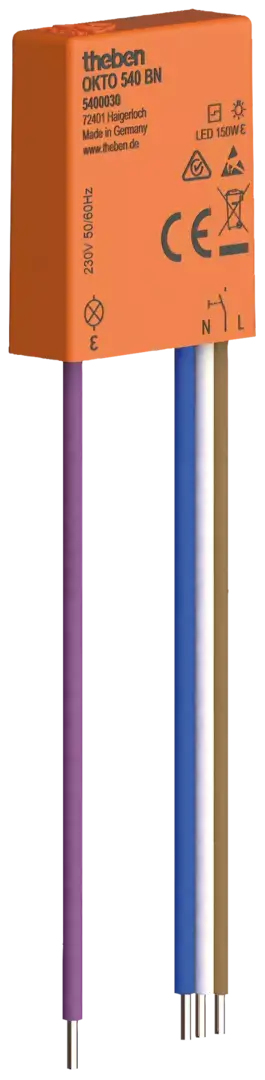

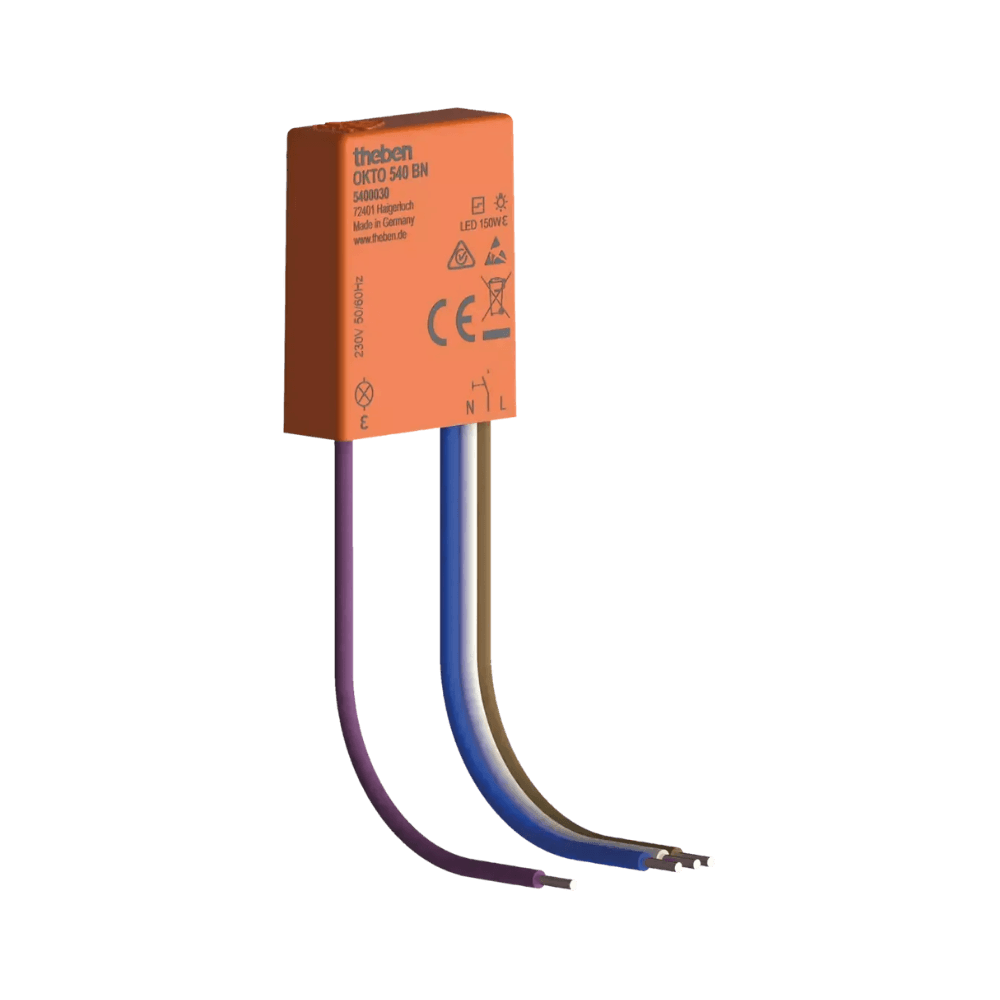

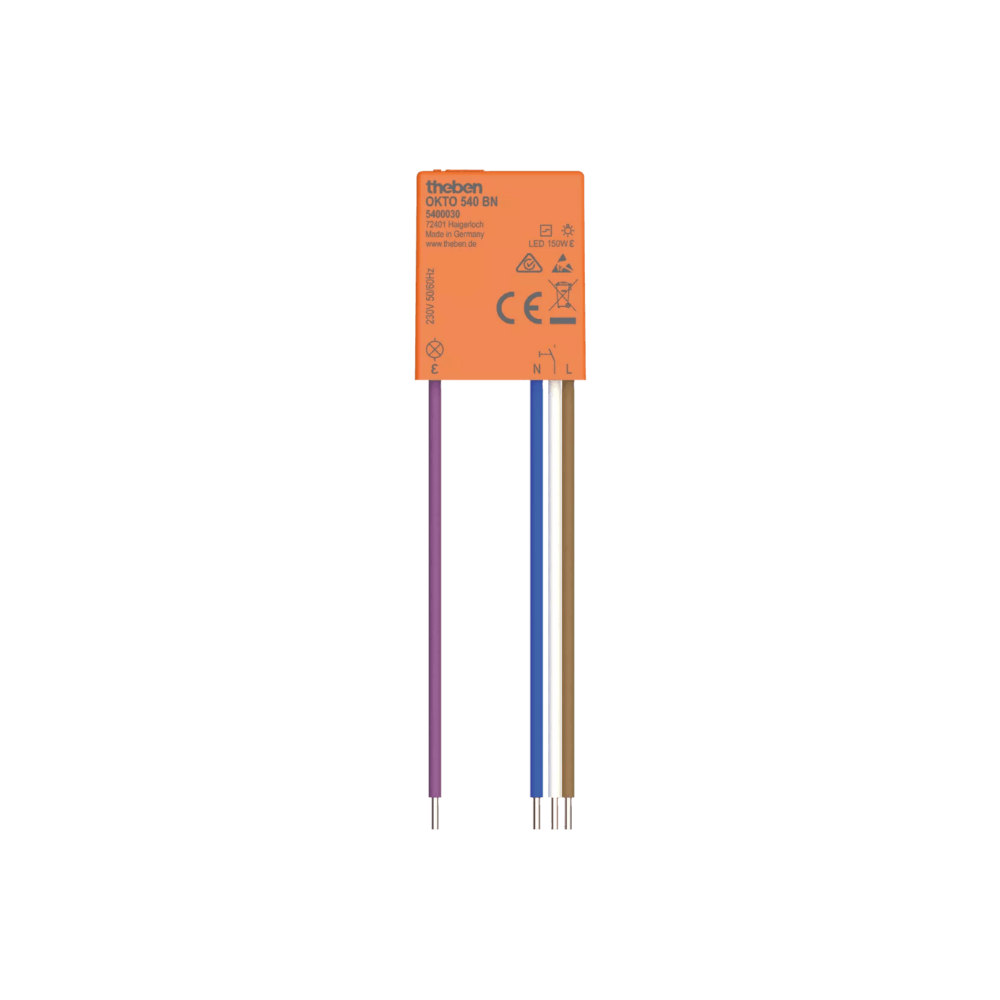

OCTOBER 540 BN in UK

Function description

Electronical latching relay

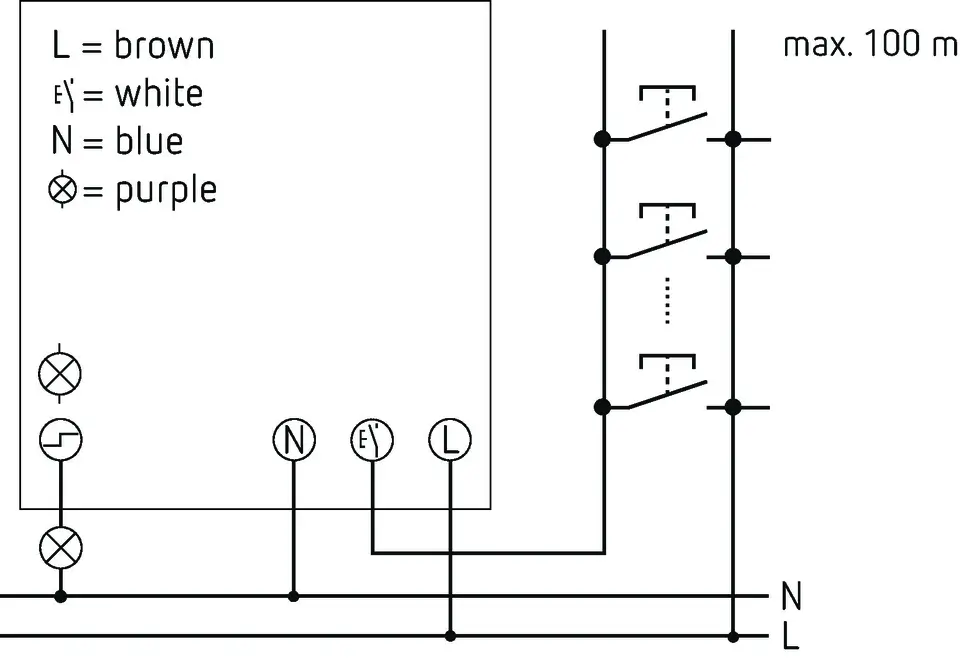

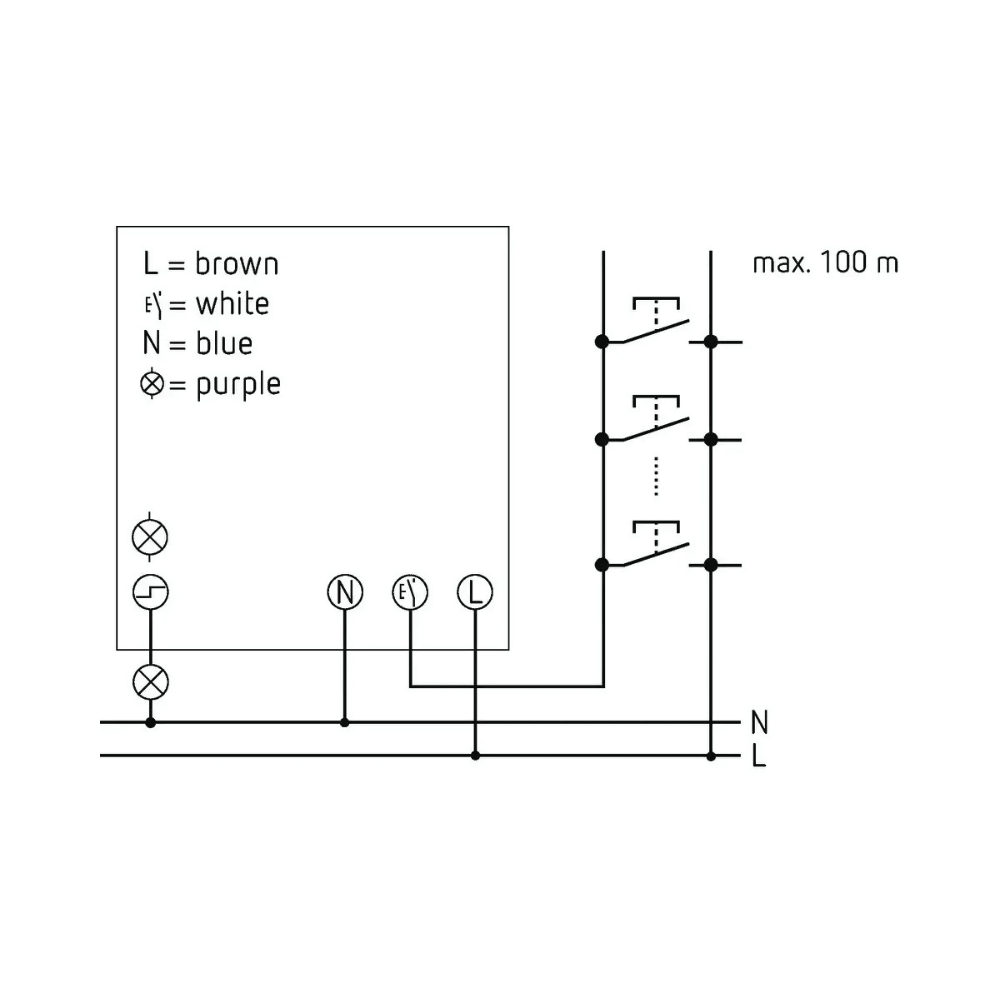

Comfortable lighting control of one common consumer with several push-buttons possible
Particularly quiet operation of the installation switch
Lamps-friendly due to zero-crossing switching
Ultra-compact design for flexible installation options
Standby consumption only 0.2 W
Pre-assembled cables for quick and secure installation

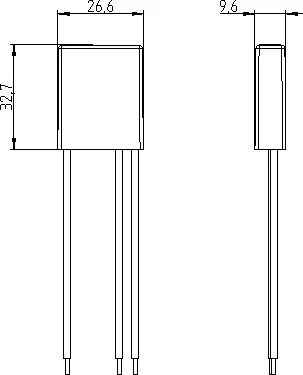

Dimensions 32.7 x 26.6 x 9.6 mm

Operating voltage	230 V AC
Frequency	50 – 60 Hz

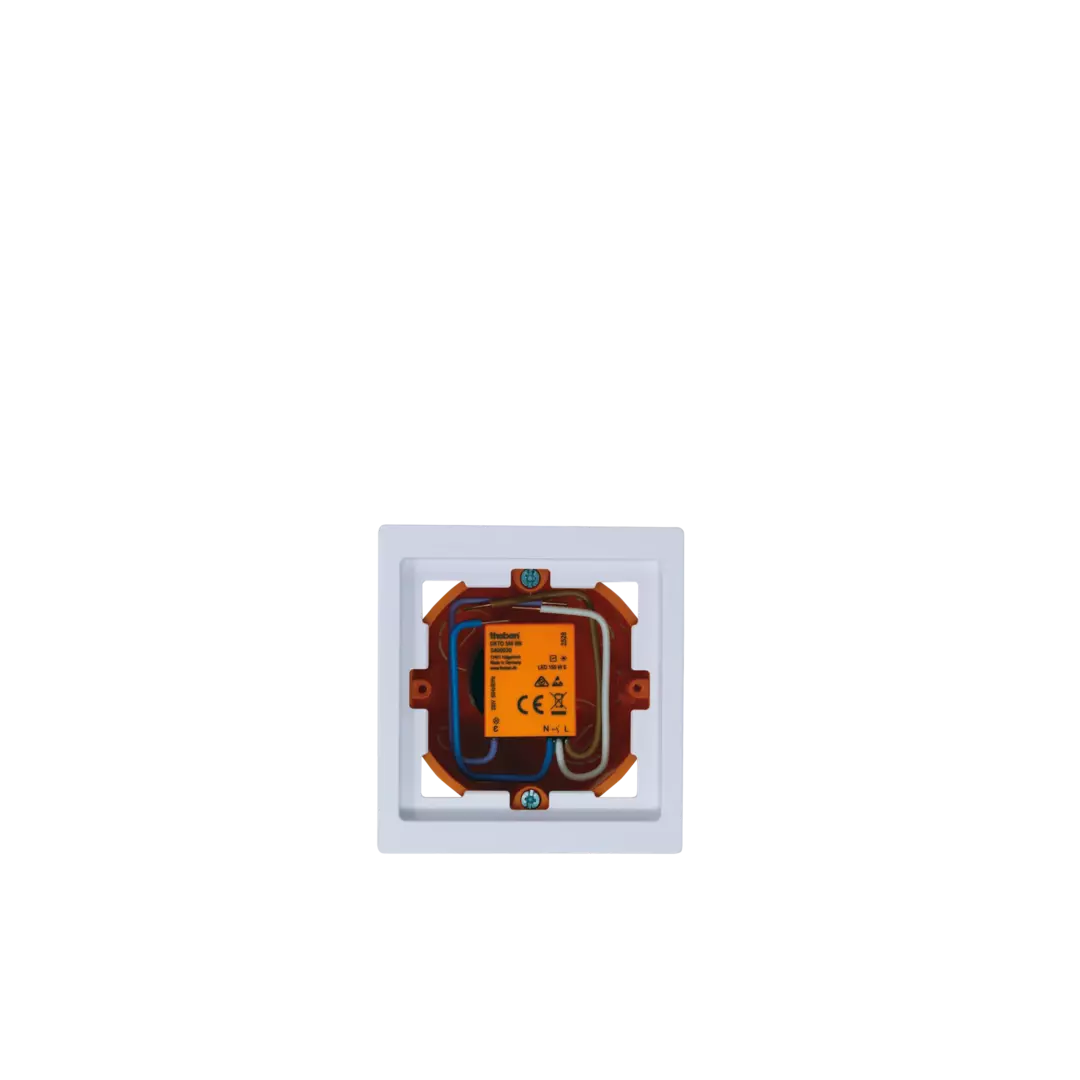

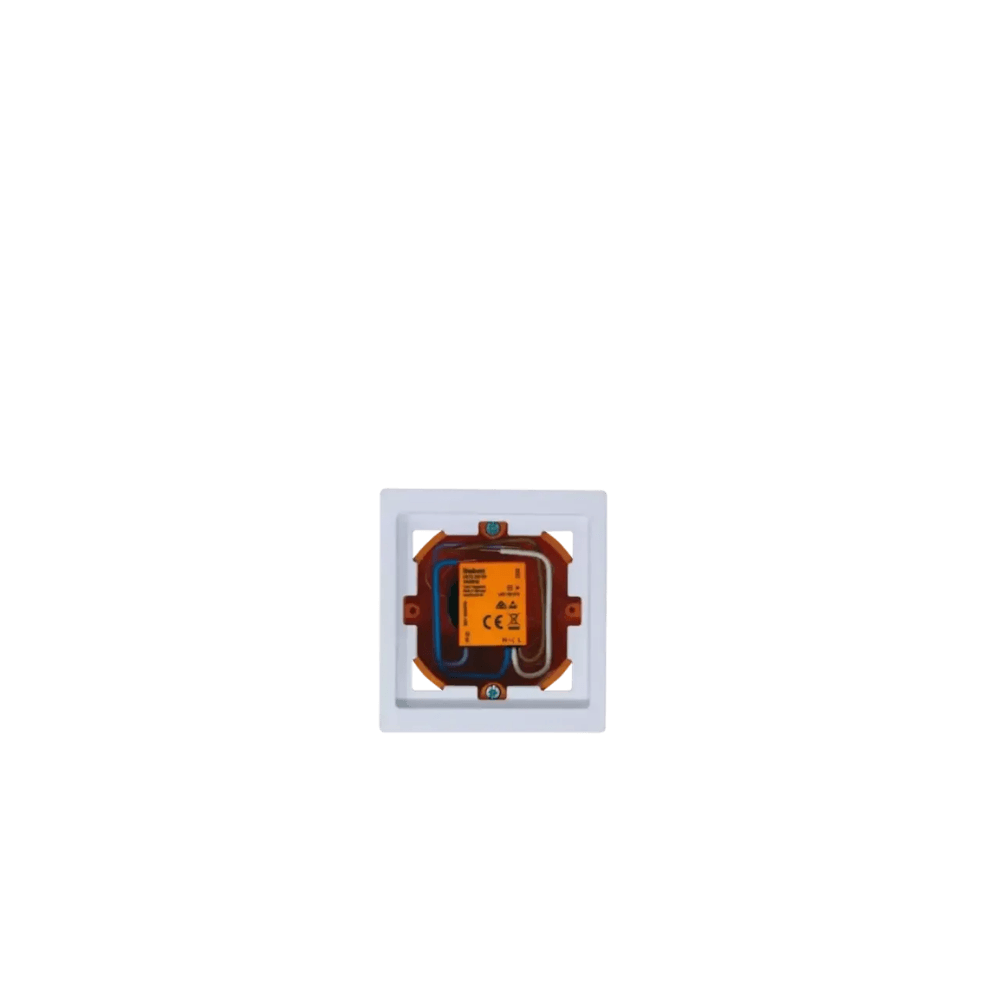

Installation type	Flush-mounted
Stand-by consumption	~0.2 W
Incandescent/halogen lamp load	250 W
LED lamp 2-8 W	150 W
LED lamp > 8 W	150 W
Zero-cross switching	✔
Housing and insulation material	High-temperature resistant, self-extinguishing thermoplastic
Ambient temperature	-10°C … 45°C
Protection class	II

Operating instructions	PDF	OKTO 540 BN-Operating instructions (3.6 MB)
Data sheet	PDF	OKTO 540 BN (274.3 kB)
Brochure	PDF	News 03/2025 EN (2.6 MB)
Flyer	PDF	Flush-mounted surge switch OKTO 540 BN (315,2 kB)
