LUXA 103 S360-101-12 DE-UP WH
LUXA 103 S360-101-12 DE-UP WH - Image 2
LUXA 103 S360-101-12 DE-UP WH - Image 3
LUXA 103 S360-101-12 DE-UP WH - Image 4
LUXA 103 S360-101-12 DE-UP WH - Image 5
LUXA 103 S360-101-12 DE-UP WH - Image 6
LUXA 103 S360-101-12 DE-UP WH - Image 7

LUXA 103 S360-101-12 DE-UP WH

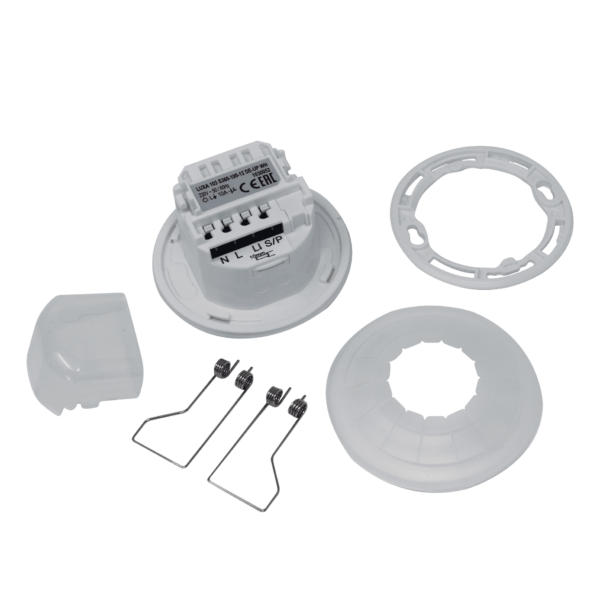

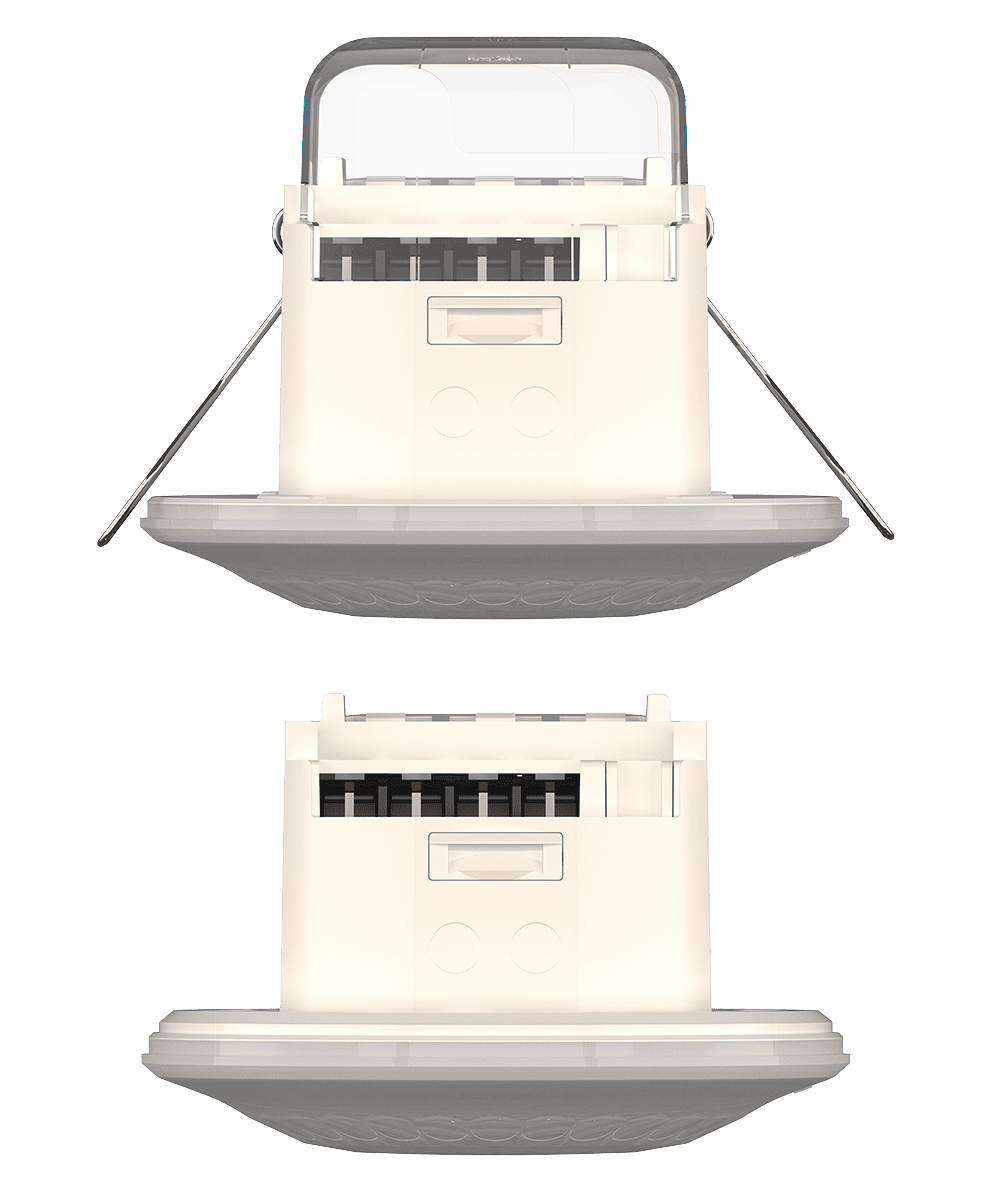

  • Passive infrared presence detector, ceiling installation as supplied or flush-mounting by means of removable springs/protection cap and enclosed mounting frame
  • 1 channel light (relay 230 V) and 1 channel presence (relay potential-free for HVAC control)

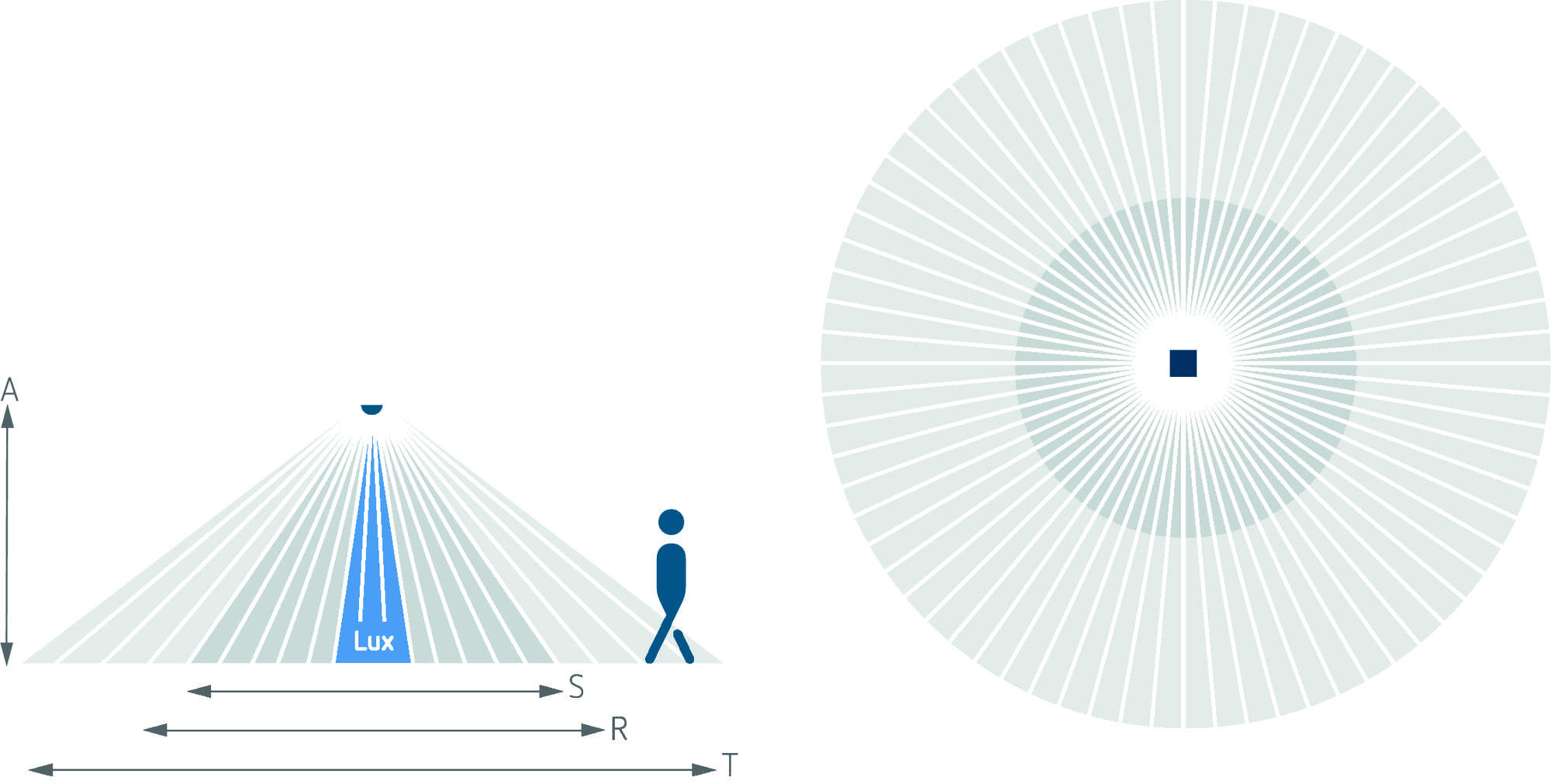

  • Circular detection area 360°, Ø 12 m (113 m2) at 3 m mounting height


Find Stockist

LUXA 103 S360-101-12 DE-UP WH

LUXA 103 S360-101-12 DE-UP WH

Request further information now

Item no.:1030053

The LUXA 103 S360-101/12 DE-UP WH is a ceiling-mounted infrared presence detector designed for efficient lighting and HVAC control. It features 1 channel for light (relay 230 V) and 1 potential-free presence channel for seamless integration with heating, ventilation, and air conditioning systems.

With a 360° detection area of up to 12 m (113 m²), it ensures reliable coverage in offices, meeting rooms, and open-plan spaces. The unit allows parallel switching of up to 8 detectors, networking with wall detectors, and manual push-button control for flexible operation.

Supporting fully and semi-automatic modes, it includes smart functions like teach-in, test, pulse, and staircase lighting. Factory presets make it ready to use immediately, while adjustments can be made via potentiometers or optional theSenda remote controls. With an IP54 protection rating when fitted, the LUXA 103 DE-UP WH delivers accurate, durable performance in both indoor and outdoor applications.

Function description

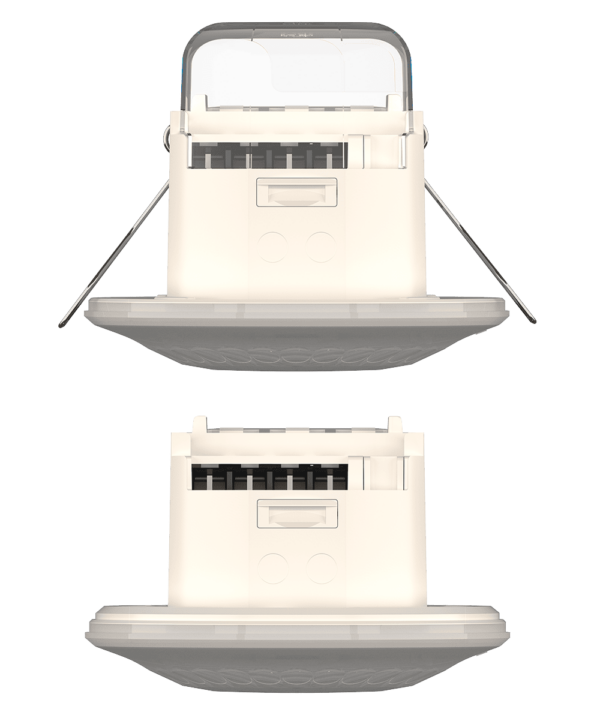

  • Passive infrared presence detector, ceiling installation as supplied or flush-mounting by means of removable springs/protection cap and enclosed mounting frame
  • 1 channel light (relay 230 V) and 1 channel presence (relay potential-free for HVAC control)
  • Circular detection area 360°, Ø 12 m (113 m2) at 3 m mounting height
  • Extension of the detection area by parallel switching, a maximum of 8 detectors can be connected in parallel
  • Networking with wall detector theMura Slave possible
  • Connection option for push-button for manual switching
  • Operation as fully or semi-automatic possible
  • One directional brightness measurement (mixed light measurement)
  • Teach-in function, pulse function, test function, staircase lighting function
  • Ready for operation immediately due to factory presetting

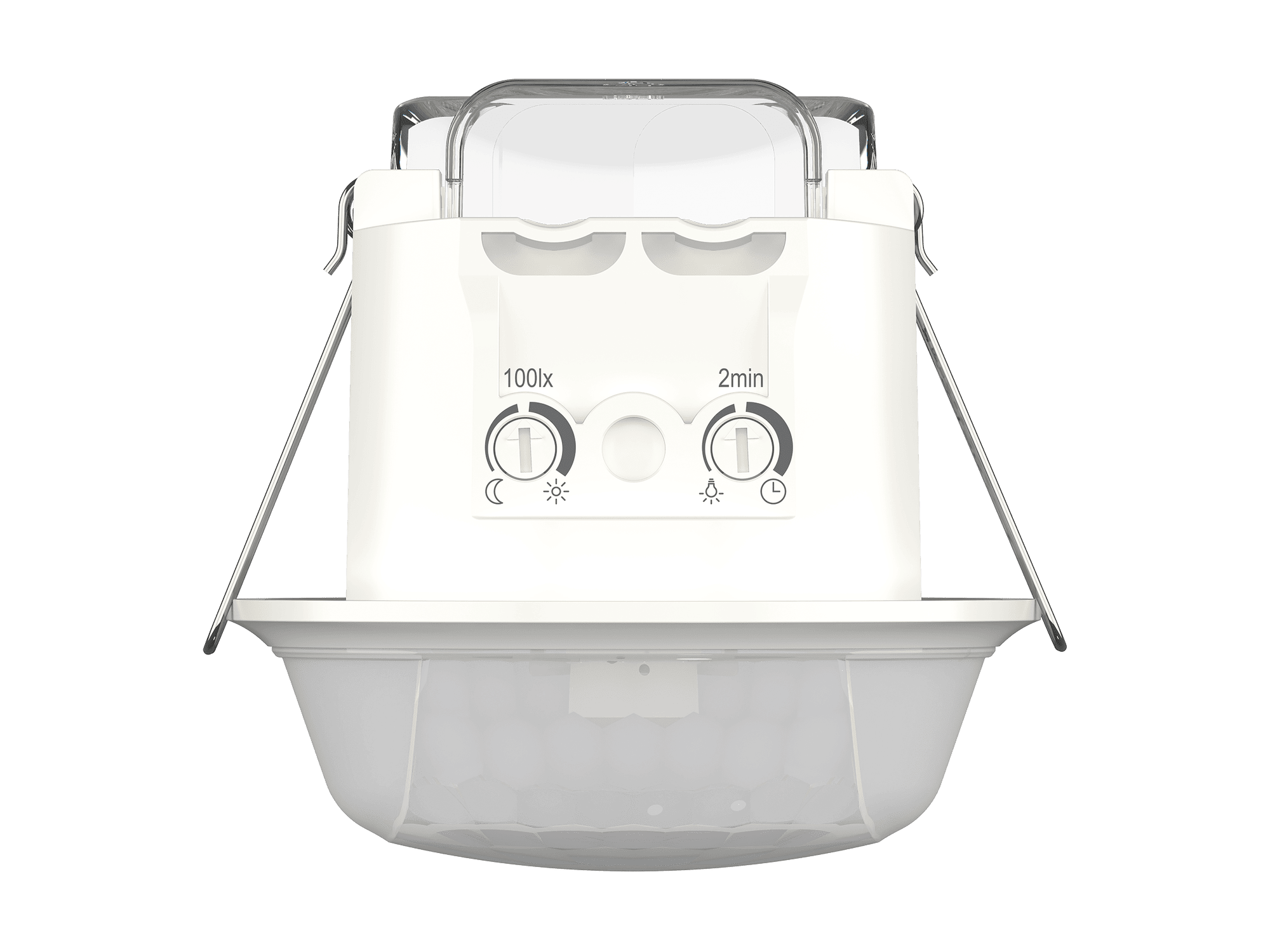

  • Changes of values and settings are possible with potentiometers and with one of these optional remote controls:
  • App/universal remote control theSenda B
  • Service remote control theSenda P
  • Optional user remote control for manual override theSenda S/theSenda B
  • Restriction of the detection range possible
  • Also suitable for outdoor applications, by changing the installation location the detection range is reduced to Ø 8 m

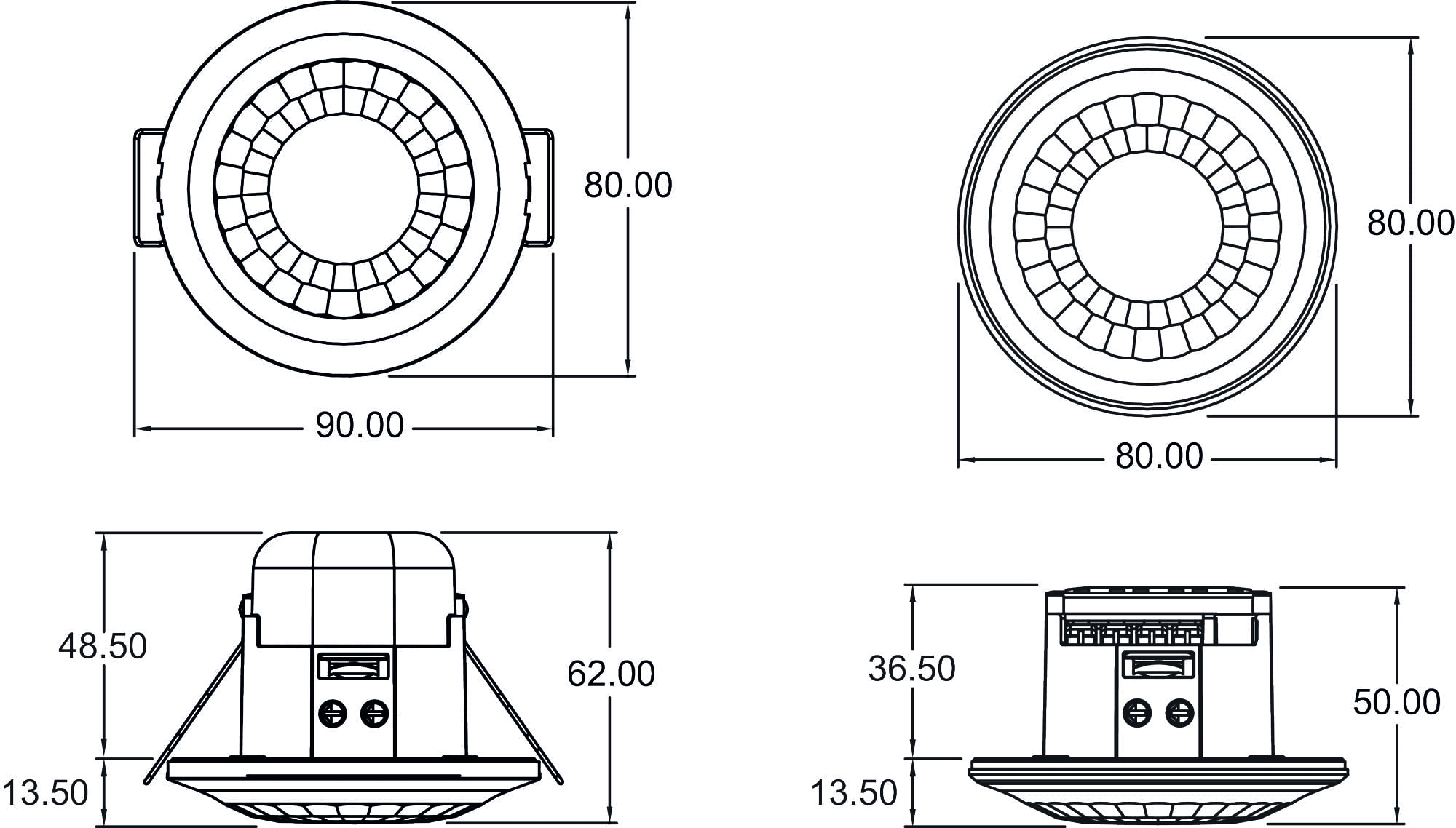

Technical data

Specification Value
Operating voltage 230 V AC
Frequency 50 Hz
Stand-by consumption ca. 0.5 W
Light measurement Mixed light measurement
Colour White
Installation type Ceiling installation
Setting range brightness 5 lx – 1000 lx
Detection angle 360°
Installation height 2.5 – 3.5 m
Switching output Light | Presence
Light switch-off delay 15 s – 30 min
Presence switch-off delay 10 s – 120 min
Switch-on delay presence 0 s – 10 min
Incandescent/halogen lamp load 2300 W
Inrush current max. 500 A / 200 µs
LED lamp 2-8 W 400 W
LED lamp > 8 W 400 W
Lamp types Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Detection range 113 m² (ø 12 m | 360°)
Detection range shape Round
Remote controlled Yes
Ambient temperature -25°C … 55°C
Type of protection IP 54 (when fitted)
