Compact ceiling-mounted presence detector for smart lighting

LUXA 103 S360-101-12 AP WH - Image 2

LUXA 103 S360-101-12 AP WH - Image 3

LUXA 103 S360-101-12 AP WH - Image 4

LUXA 103 S360-101-12 AP WH

Item no.:1030063

The LUXA 103 S360-101/12 AP WH is a versatile surface-mounted PIR presence detector designed for smart, energy-efficient building control. It features 1 channel for light (relay 230 V) and 1 channel for presence (potential-free relay for HVAC control), making it ideal for both lighting and climate management.

With a 360° circular detection area up to 12 m (113 m²), the sensor ensures reliable coverage for offices, meeting rooms, and open spaces. It supports parallel switching of up to 8 detectors, integration with wall detectors, and manual push-button control.

The unit operates in fully or semi-automatic modes, with advanced functions like teach-in, test, pulse, and staircase lighting. Settings can be easily adjusted using potentiometers or optional theSenda remote controls. With an IP54 protection rating and outdoor suitability, the LUXA 103 S360-101/12 AP WH delivers dependable performance in a wide range of applications.

Request further information now

LUXA 103 S360-101-12 AP WH

LUXA 103 S360-101-12 AP WH

Request further information now

Function description

Passive infrared presence detector, surface-mounting
1 channel light (relay 230 V) and 1 channel presence (relay potential-free for HVAC control)
Circular detection area 360°, Ø 12 m (113 m2) at 3 m mounting height
Extension of the detection area by parallel switching, a maximum of 8 detectors can be connected in parallel
Networking with wall detector theMura Slave possible
Connection option for push-button for manual switching
Operation as fully or semi-automatic possible
One directional brightness measurement (mixed light measurement)
Teach-in function, pulse function, test function, staircase lighting function
Ready for operation immediately due to factory presetting

Changes of values and settings are possible with potentiometers and with one of these optional remote controls:
App/universal remote control theSenda B
Service remote control theSenda P
Optional user remote control for manual override theSenda S/theSenda B
Restriction of the detection range possible
Also suitable for outdoor applications, by changing the installation location the detection range is reduced to Ø 8 m

Technical data

Specification	Value
Operating voltage	230 V AC
Frequency	50 Hz
Stand-by consumption	ca. 0.5 W
Light measurement	Mixed light measurement
Colour	White

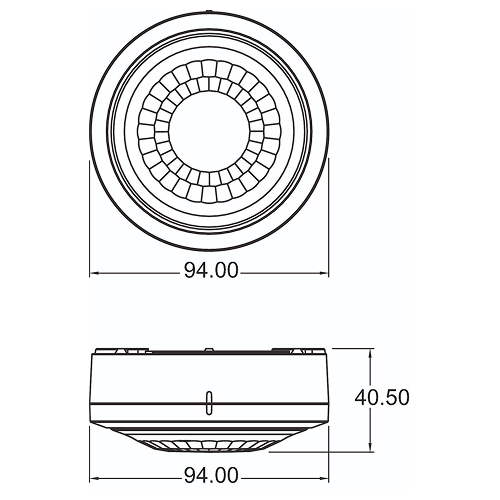

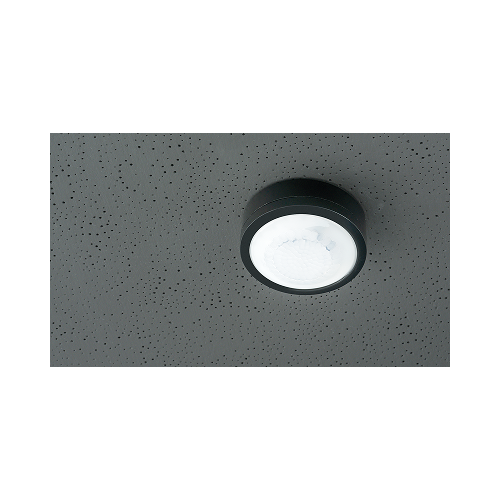

Installation type	Ceiling installation
Setting range brightness	5 lx – 1000 lx
Detection angle	360°
Installation height	2.5 – 3.5 m
Switching output	Light \| Presence
Light switch-off delay	15 s – 30 min
Presence switch-off delay	10 s – 120 min
Switch-on delay presence	0 s – 10 min
Incandescent/halogen lamp load	2300 W
Inrush current	max. 500 A / 200 µs
LED lamp 2-8 W	400 W
LED lamp > 8 W	400 W
Lamp types	Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Detection range	113 m² (ø 12 m \| 360°)
Detection range shape	Round
Remote controlled	Yes
Ambient temperature	-25°C … 55°C
Type of protection	IP 54

Downloads

Instruction Manual	PDF	Instruction Manual
Features Overview	PDF	Features Overview
Datasheet	PDF	Datasheet
