LUXA 103 S360-100-12 DE-UP WH

Item no.:1030052

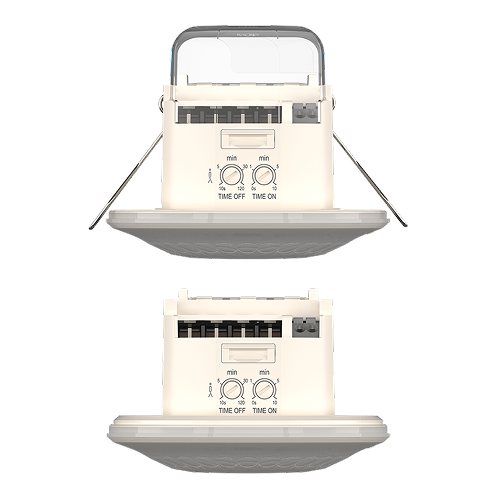

Passive infrared presence detector, ceiling installation as supplied or flush-mounting by means of removable springs/protection cap and enclosed mounting frame
1 channel light (relay 230 V)

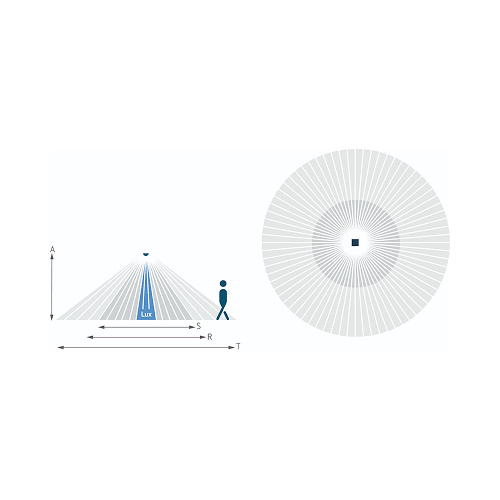

Circular detection area 360°, Ø 12 m (113 m2) at 3 m mounting height

Function description

Passive infrared presence detector, ceiling installation as supplied or flush-mounting by means of removable springs/protection cap and enclosed mounting frame
1 channel light (relay 230 V)
Circular detection area 360°, Ø 12 m (113 m2) at 3 m mounting height
Extension of the detection area by parallel switching, a maximum of 8 detectors can be connected in parallel
Networking with wall detector theMura Slave possible
Connection option for push-button for manual switching
Operation as fully or semi-automatic possible
One directional brightness measurement (mixed light measurement)
Teach-in function, pulse function, test function, staircase lighting function
Ready for operation immediately due to factory presetting

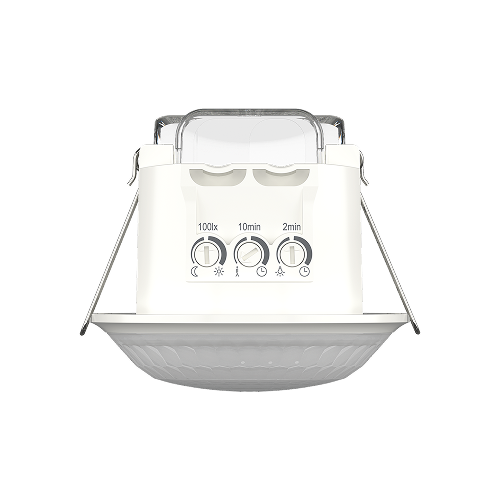

Changes of values and settings are possible with potentiometers and with one of these optional remote controls:
App/universal remote control theSenda B
Service remote control theSenda P
Optional user remote control for manual override theSenda S/theSenda B
Restriction of the detection range possible
Also suitable for outdoor applications, by changing the installation location the detection range is reduced to Ø 8 m

Specification	Value
Operating voltage	230 V AC
Frequency	50 Hz
Stand-by consumption	ca. 0.5 W
Light measurement	Mixed light measurement
Colour	White

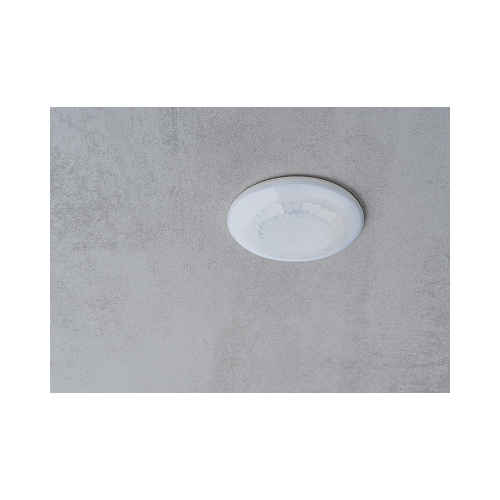

Installation type	Ceiling installation
Setting range brightness	5 lx – 1000 lx
Detection angle	360°
Installation height	2.5 – 3.5 m
Switching output	Light
Light switch-off delay	15 s – 30 min
Incandescent/halogen lamp load	2300 W
Inrush current	max. 500 A / 200 µs
LED lamp 2-8 W	400 W
LED lamp > 8 W	400 W
Lamp types	Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Detection range	113 m² (ø 12 m \| 360°)
Detection range shape	Round
Remote controlled	Yes
Ambient temperature	-25°C … 55°C
Type of protection	IP 54 (when fitted)

Document Type	Format	Download
Tender Text	PDF	LUXA 103 S36010012 DEUP WH Data Sheet
Hand Book	PDF	LUXA 103 A4 – 20 Pages Brochure (EN)
Operating Instructions	PDF	LUXA 103 S360 Operating Instructions
