Item no.: 5400130

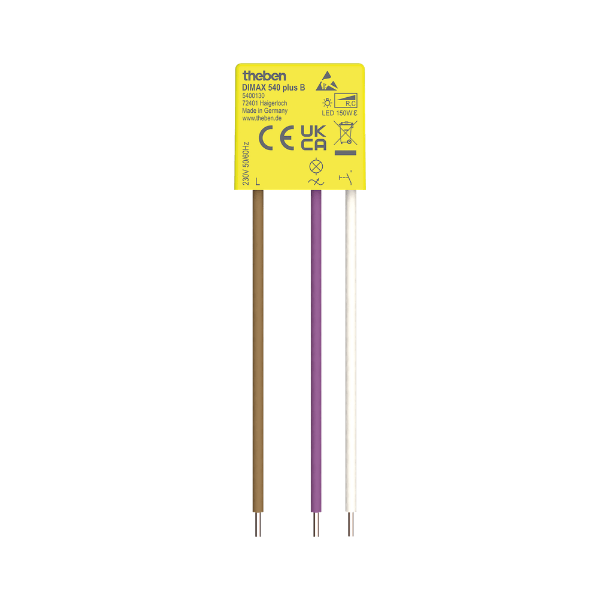

The Dimax 540 plus B is a reliable flush-mounted dimmer for R and C loads, optimized for LEDs and incandescent lamps. Designed without the need for a neutral conductor, it’s the perfect solution for retrofitting and modern lighting upgrades.
With its compact design and encapsulated electronics, it offers durability and easy installation. Built-in safety features include temperature cut-off, overcurrent protection, and a short-circuit fuse, ensuring dependable performance.
The memory function saves your last brightness level, automatically restoring it on the next use, while the adjustable minimum brightness (default 10%) provides flexible light control. With low 0.34 W standby consumption, it’s energy-efficient and cost-effective.
| Parameter | Specification |
|---|---|
| Operating voltage | 230 V AC |
| Frequency | 50 – 60 Hz |
| Installation type | Flush-mounted |
| Stand-by consumption | ~0.34 W |
| Incandescent/halogen lamp load | 150 W |
| LED lamp 2–8 W | 150 W |
| Setting | Push-button |
| Max. cable length | 100 m |
| Ambient temperature | -10°C to 45°C |
