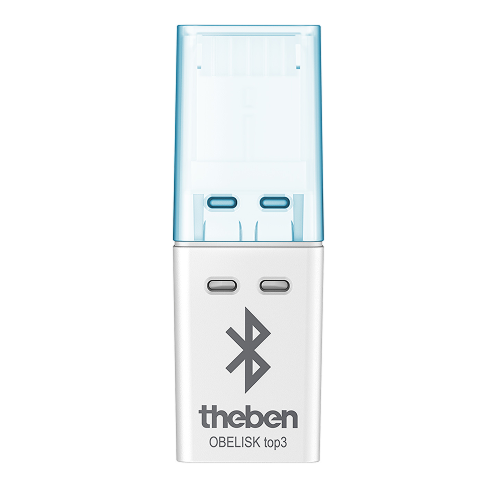

Bluetooth OBELISK top3

Function description

  • Bluetooth low-energy dongle for the transfer of switching programs and direct commands from the app to the time switch
  • Plug-in via the standard top3 OBELISK interface
  • Maximum manipulation security, Time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch
  • Low consumption on standby compared with permanently installed Bluetooth components
  • Built-in memory function (EEPROM), memory function can also be used in the PC programming set
  • Can also be used as a memory card for all top3 and top2 devices in mains operation

General technical data

Parameter Specification
Operating voltage 3.3 (5.0) V =
Operating voltage (tolerance) ± 10%
Ambient temperature -30 … +55 °C
Storage temperature -30 … +70 °C
Device standard EN 60730 and EN 60669
Protection class IP 40
Radio Technical Information
Transmission frequency 2402 … 2480 MHz
Transmission power 2.9 mW
Range min. 15 m
Field strength display No
Radio standard Bluetooth 4.2
Transceiver type Bidirectional
Dimensions and Weights
Height without packaging 10.1 mm
Width without packaging 17.4 mm
Depth without packaging 50 mm
Weight without packaging 6 g
Height with packaging 15 mm
Width with packaging 60 mm
Depth with packaging 123.5 mm
Weight with packaging 16 g
